Product Information
-

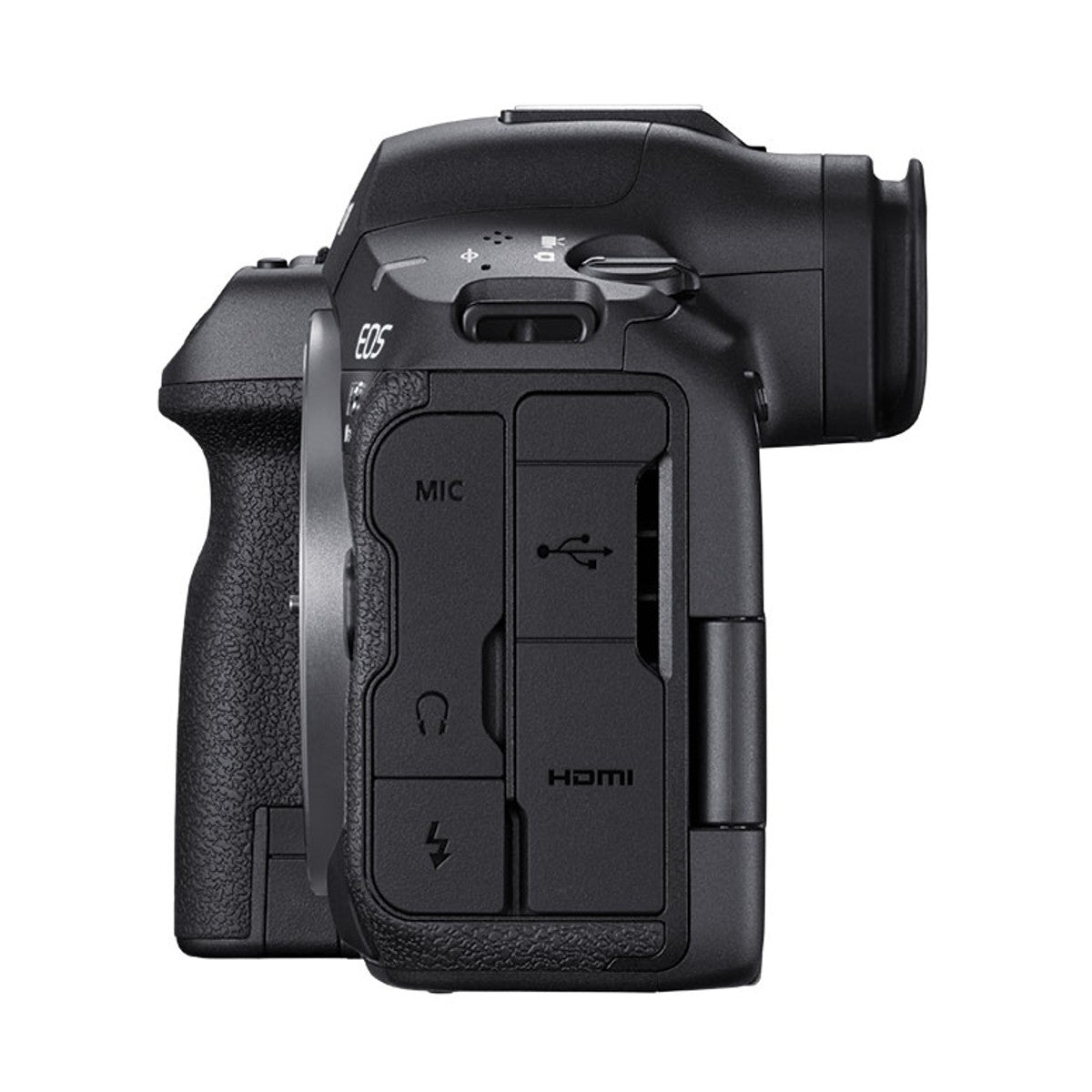

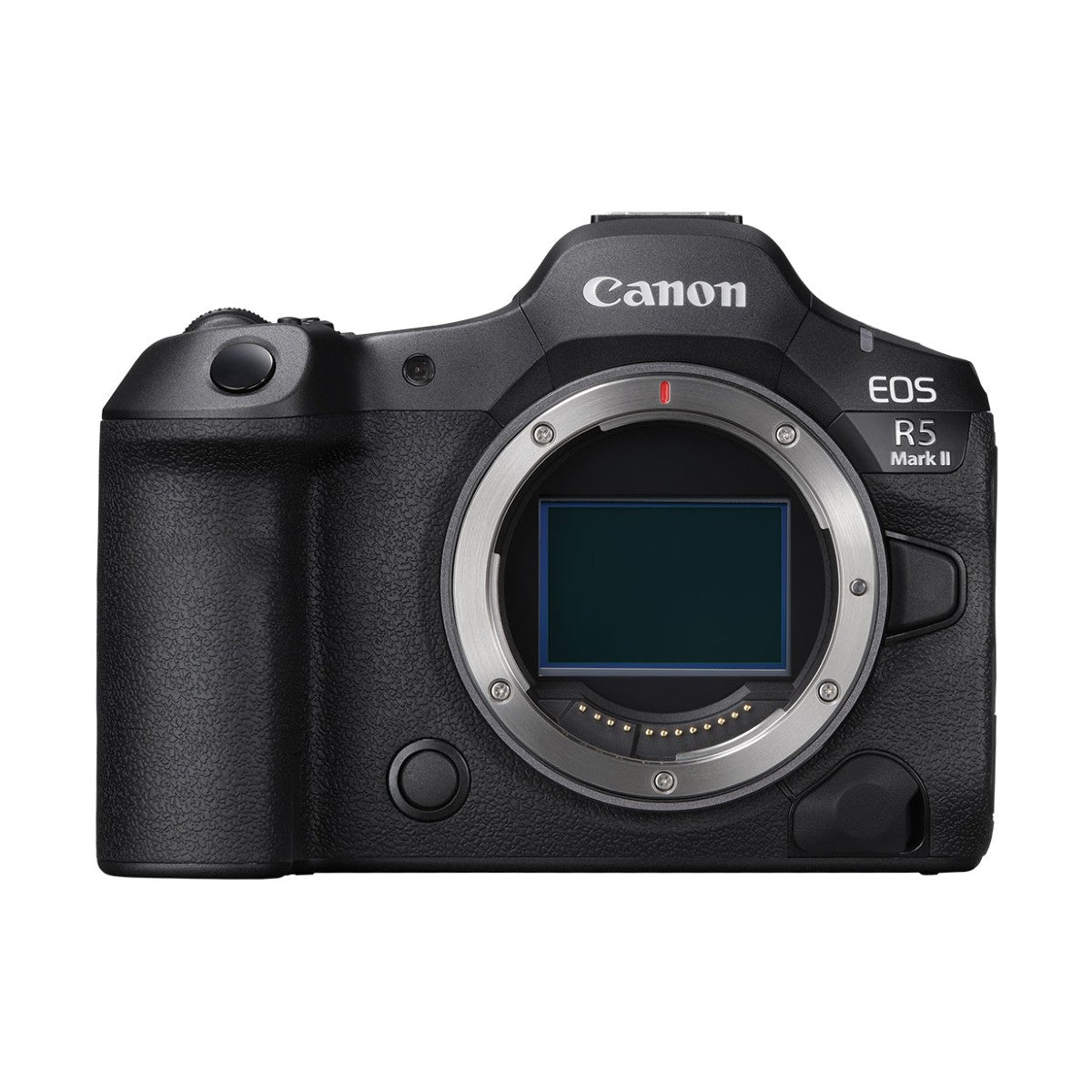

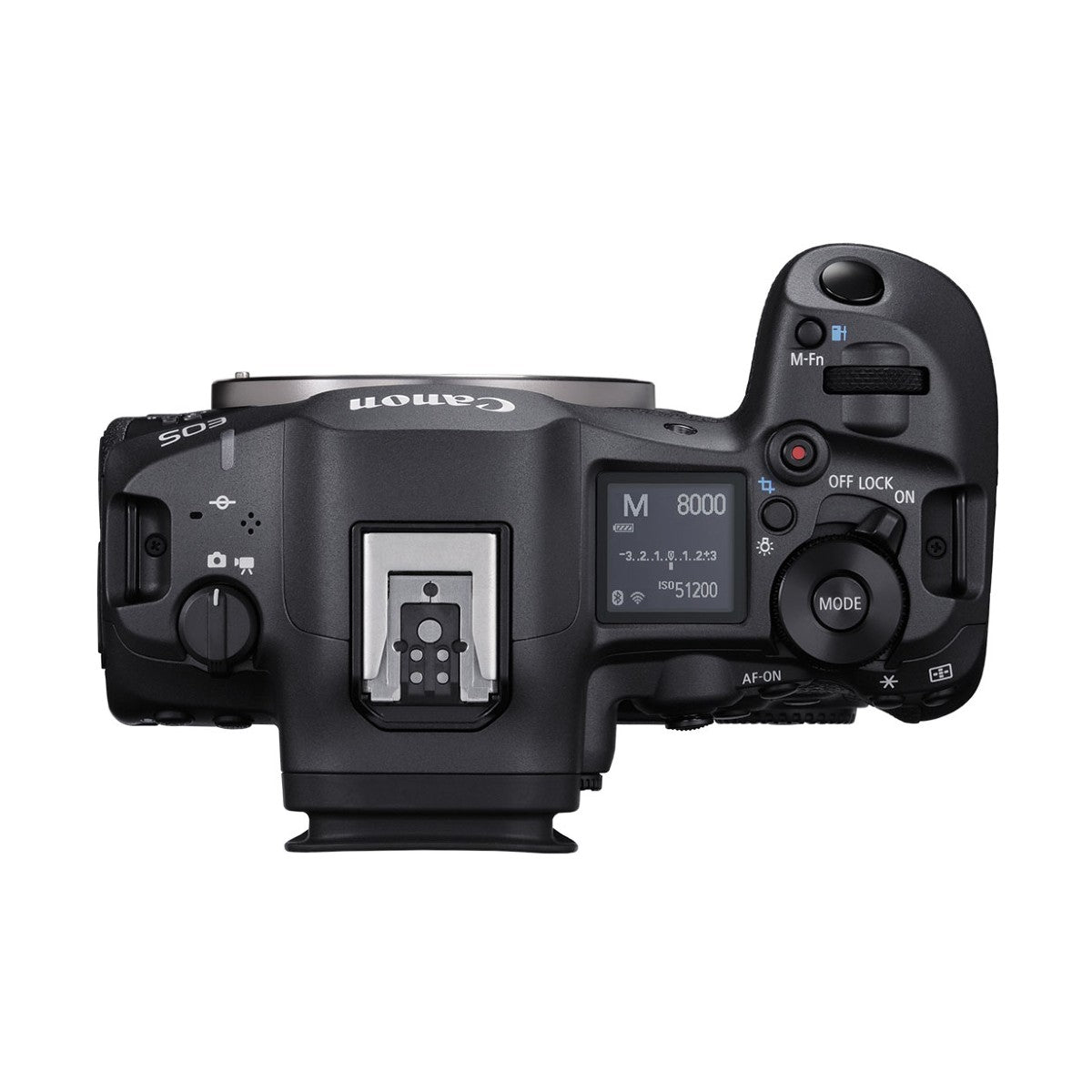

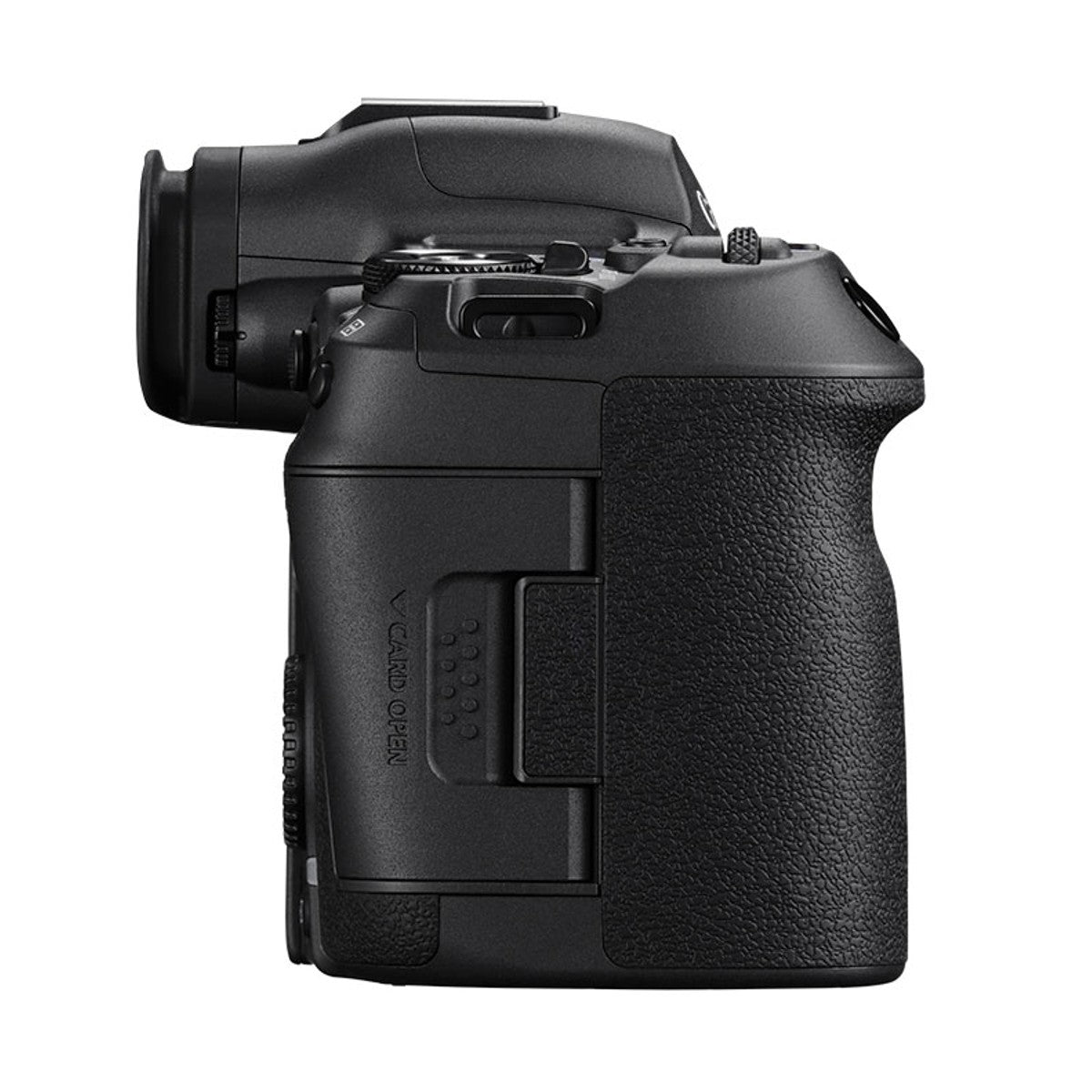

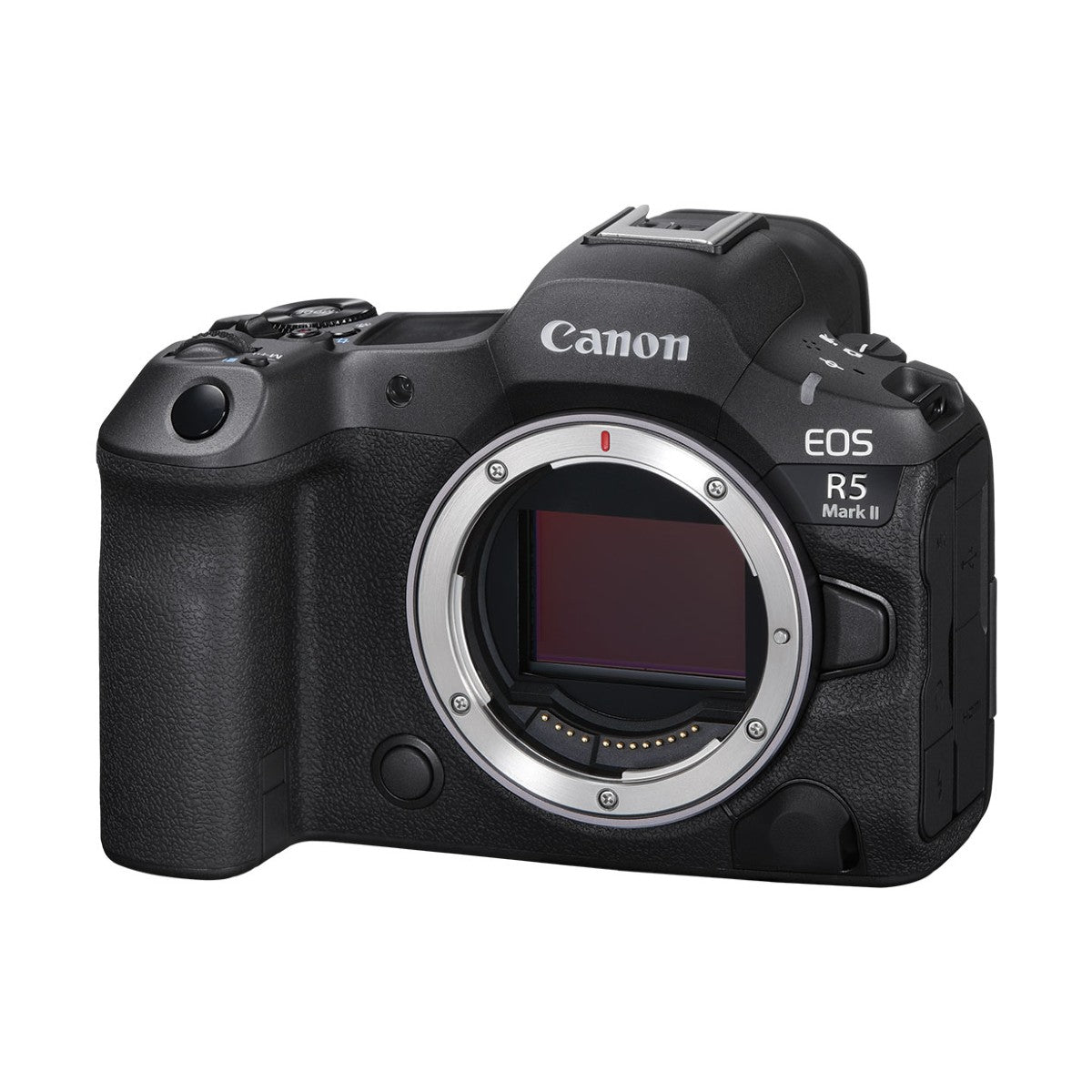

EOS R5 Mark II Body
-
Eyecup ER-kE
-
Shoe Cover ER-SC3
-
Camera Cover R-F-5
-
Strap ER-EOS R5 Mark II
-

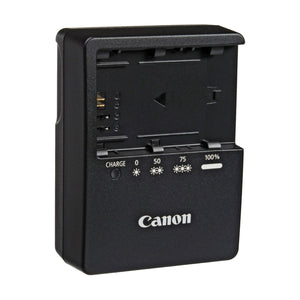

Battery Charger LC-E6
-

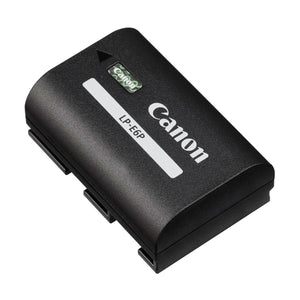

Battery Pack LP-E6P
-
Battery Pack Cover
-
Power Cord
-
Interface Cable IFC-100U
| Camera | |
|---|---|
| Camera Format | Full-Frame |
| Lens Mount | Canon RF |
| Crop Factor | 1x |
| Image Sensor | |
|---|---|
| Image Sensor Type | CMOS |
| Image Sensor Size | 36.0 x 24.0 mm |
| Total Pixels | 47.1 MP |
| Effective Pixels | 45 MP |
| ISO Sensitivity | 100-51,200 |
| Extended ISO Sensitivity | 50-102,400 |
| Stabilization | 5-axis In-Body Image Stabilization |
| Formats | |
|---|---|
| File Format | Stills: JPEG, HEIF, RAW, C-RAW Movies: ALL-I, IPB, RAW |
| Media | |
|---|---|
| Card Slots | 2 |
| Types | 1 x CFexpress Type B 1 x SD UHS-II |
| Autofocus | |
|---|---|
| Focus Methods | Dual Pixel CMOS AF, Manual |
| AF Modes | Face+Tracking AF Spot AF 1-point AF Expand AF area: Above/below/left/right Expand AF area: Around Flexible Zone AF 1 Flexible Zone AF 2 Flexible Zone AF 3 Whole area AF Whole area tracking OFF Spot AF Whole area tracking OFF 1-point AF Whole area tracking OFF Expand AF area: Above/below/left/right Whole area tracking OFF Expand AF area: Around |
| Autofocus Coverage | 100% |
| Autofocus Positions | 5850 |
| Autofocus Zones | Stills: Max. 1053 zones Movies: Max. 975 zones |
| Autofocus Sensitivity | EV -7.5 to 21 |
| Shutter | |
|---|---|
| Shutter Speed | Mechanical/Elec. 1st- curtain: 1/8000-30 sec, bulb Electronic: 1/32000-30 sec. |
| Continuous Shooting | Mechanical: 12 fps Electronic: 30 fps |
| Self Timer | 10-sec, 2-sec |
| Interval Recording | Yes |
| Flash | |
|---|---|
| Built-in Flash | No |
| Video | |
|---|---|
| File Format | MP4, RAW (CRM) |
| Video Quality and Frame Rates | Raw 14-Bit DCI 8K (8192 x 4320): 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160): 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320): 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320): 23.98/25/29.97 fps DCI 4K (4096 x 2160): 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160): 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080): 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps FHD (1920 x 1080): 23.98/25/29.97/50/59.94/100/120/200/240 fps |
| Video Compression | 8k: H.265 / HEVC / HEV 4K / Full HD: H.264 / MPEG-4 AVC / H.265 / HEVC |
| Max Recording Time | 6 hr |
| External Recording Modes | 4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps |
| Monitor and Viewfinder | |
|---|---|
| Monitor Type | Vari-angle LCD Touchscreen |
| Monitor Size | 3.2" |
| Monitor Resolution | Approx. 2.1 million dots |
| Viewfinder Type | OLED color electronic viewfinder; 0.5-inch, approx. 5.76 million dots |
| Viewfinder Coverage | 100% |
| Viewfinder Resolution | 5.76 million dots |
| Magnification | Approx. 0.76x |
| Connectivity | |
|---|---|
| Interface | USB-C, HDMI-Micro, 3.5mm Mic Input, 3.5mm Headphone |
| Wireless | Bluetooth, WiFi (2.4/5 GHz) |
| GPS | No |
| Power | |
|---|---|
| Battery | LP-E6P |
| Battery Charger | LC-E6 |
| AC Adapter | AC Adapter AC-E6N + DC Coupler DR-E6 |
| Physical | |
|---|---|
| Dimensions (W x H x D) | Approx. 5.45 x 3.87 x 3.48 in. / 138.4 x 98.4 x 88.4mm |
| Weight | Approx. 1.3 lbs. / 588g (Body Only) |
| Operating Environment | 32–104°F / 0–40°C 85% Humidity or less |
