Configurations

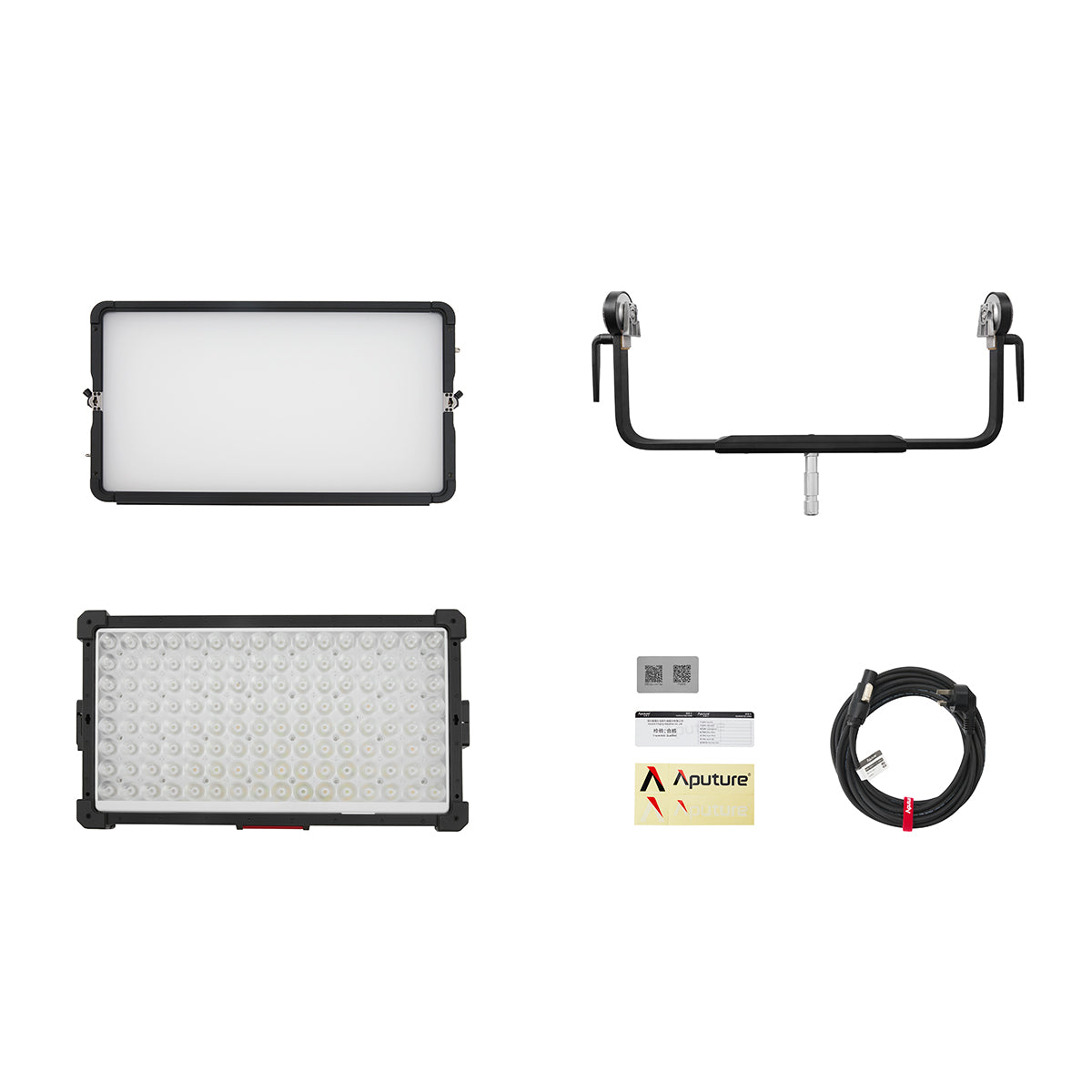

Product Information
-
NOVA 9º 2x1 Lamp Head
-
NOVA 2x1 Removable Yoke with Junior Pin
-
NOVA 2x1 Flat Diffuser
-
AC Power Cable (6m)
-
Safety Chain (50cm)
| Light Fixture | |
|---|---|
| LED Chipset | BLAIR |
| Color Temperature | 1800 to 20,000K |
| Color Modes | Full RGB Tuning |
| Color Accuracy Standard | CRI ≥95 TLCI ≥95 SSI(Tungsten) 89 SSI(D56) 86 |
| Cooling System | Active (onboard fans) |
| Dimming | Yes, 0.1 to 100% |
| Display | LCD |
| Photometrics - No Modifier | 1800K 5m: 19,590 LUX / 1,819 FC 2500K 5m: 25,410 LUX / 2,365 FC 3200K 5m: 28,090 LUX / 2,611 FC 4300K 5m: 29,980 LUX / 2,786 FC 5600K 5m: 29,730 LUX / 2,765 FC 6500K 5m: 29,270 LUX / 2,719 FC 10,000K 5m: 27,150 LUX / 2,524 FC 20,000K 5m: 24,210 LUX / 2,249 FC |
| Lamp Head (Without Yoke) | 69.1 × 38.8 ×13.6 cm 27.2 × 15.3 × 5.4 in |
| Lamp Head (With Yoke) | 82.9 × 56.6 × 15.4 cm 32.7 × 22.3 × 6.1 in |
| Fixture Weight | 43.32lbs / 19.65kg |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Connectors | |
|---|---|

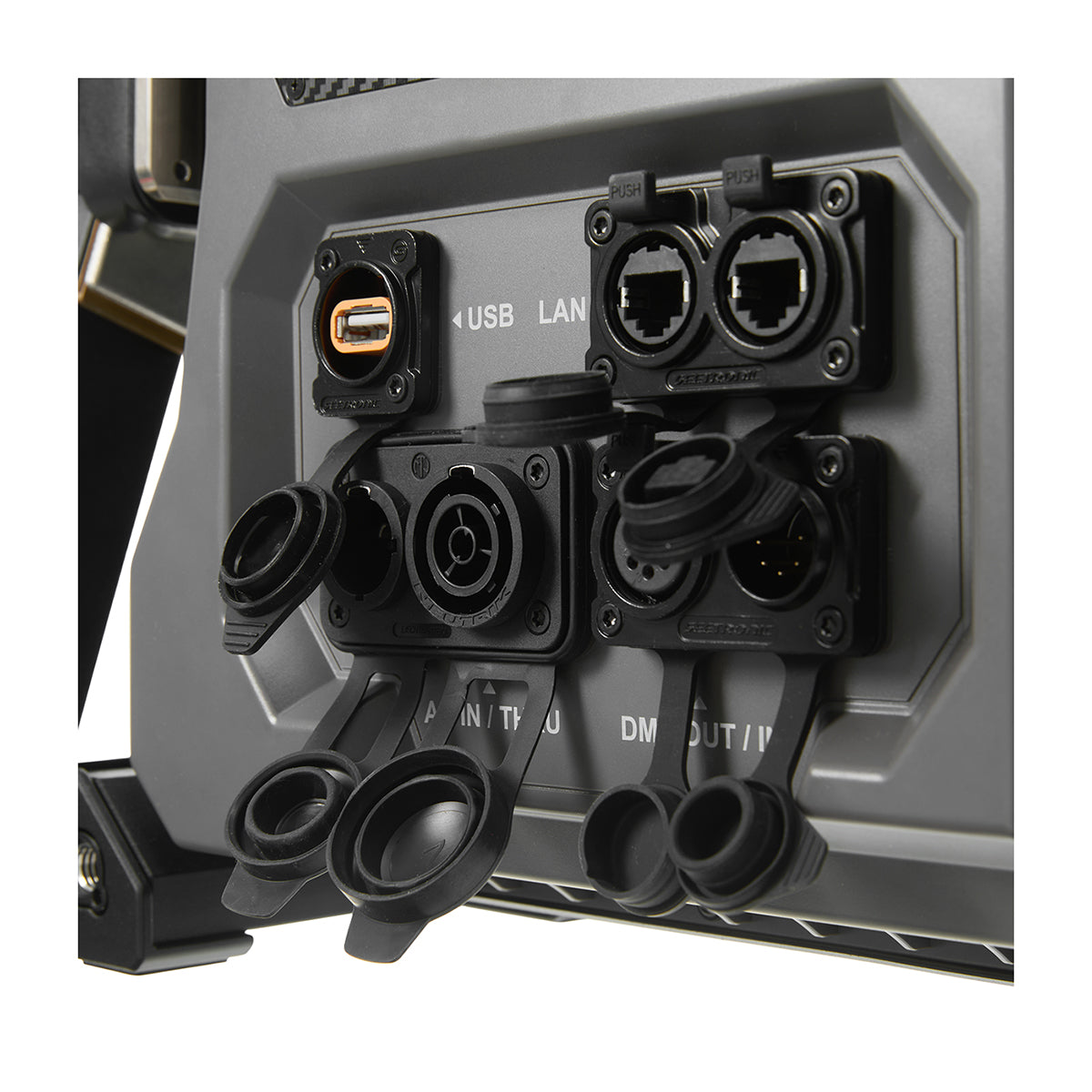

| Control Ports | 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking RJ45 |
| Control Methods | Onboard, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM |
| Firmware Upgrade Methods | Sidus Link, Sidus Link Pro, USB-A |
| Wireless Range (Bluetooth & CRMX) | ≤100m / ≤328.1ft |
| Mounting | |
|---|---|
| Fixture Mount | Junior Pin |
| Power | |
|---|---|
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter, External Battery |
| Max Power Consumption | 800 W |
| Max Power Output | 650 W |
