Product Information
Engineered Sunlight in a Single Source
The Aputure NOVA 9º 2x1 3-Light Kit is designed for productions that need the authority and precision of direct sunlight—anywhere, anytime. By vertically combining three NOVA 9º 2x1 panels into one unified fixture, this system creates a concentrated beam of hard, directional light with beautifully defined shadows. The result is a commanding source that feels natural, intentional, and cinematic, even at long distances.

Serious Output Without Complicated Power
Despite its impressive intensity, the NOVA 9º 2x1 3-Light Kit keeps real-world setups refreshingly simple. The slim, vertical design delivers massive output from a single unit while running on a standard 20A household circuit. That means fewer cables, faster setups, and less time worrying about power logistics—whether you’re on location or in a controlled studio environment.

Sunlight-Accurate Color, Dialed to Perfection
At the heart of the fixture is Aputure’s advanced BLAIR light engine, crafted to produce exceptionally accurate tunable white light. By blending blue, lime, amber, indigo, and red emitters, the system achieves refined spectral balance across a wide color temperature range from 1,800K to 20,000K. Indigo emitters enhance naturally fluorescing materials the way real sunlight does, while extended red output brings depth and realism to skin tones.
Built to Throw Light Where It Matters
The NOVA 9º 2x1 3-Light Kit is purpose-built for reach and control. Its narrow beam angle delivers intense illumination with minimal spill, making it ideal for punching through windows, shaping light with reflectors, or creating dramatic sunbeam effects on set. Even at 10 meters, it outperforms traditional high-wattage tungsten fixtures, offering striking brightness with modern efficiency and control.

-

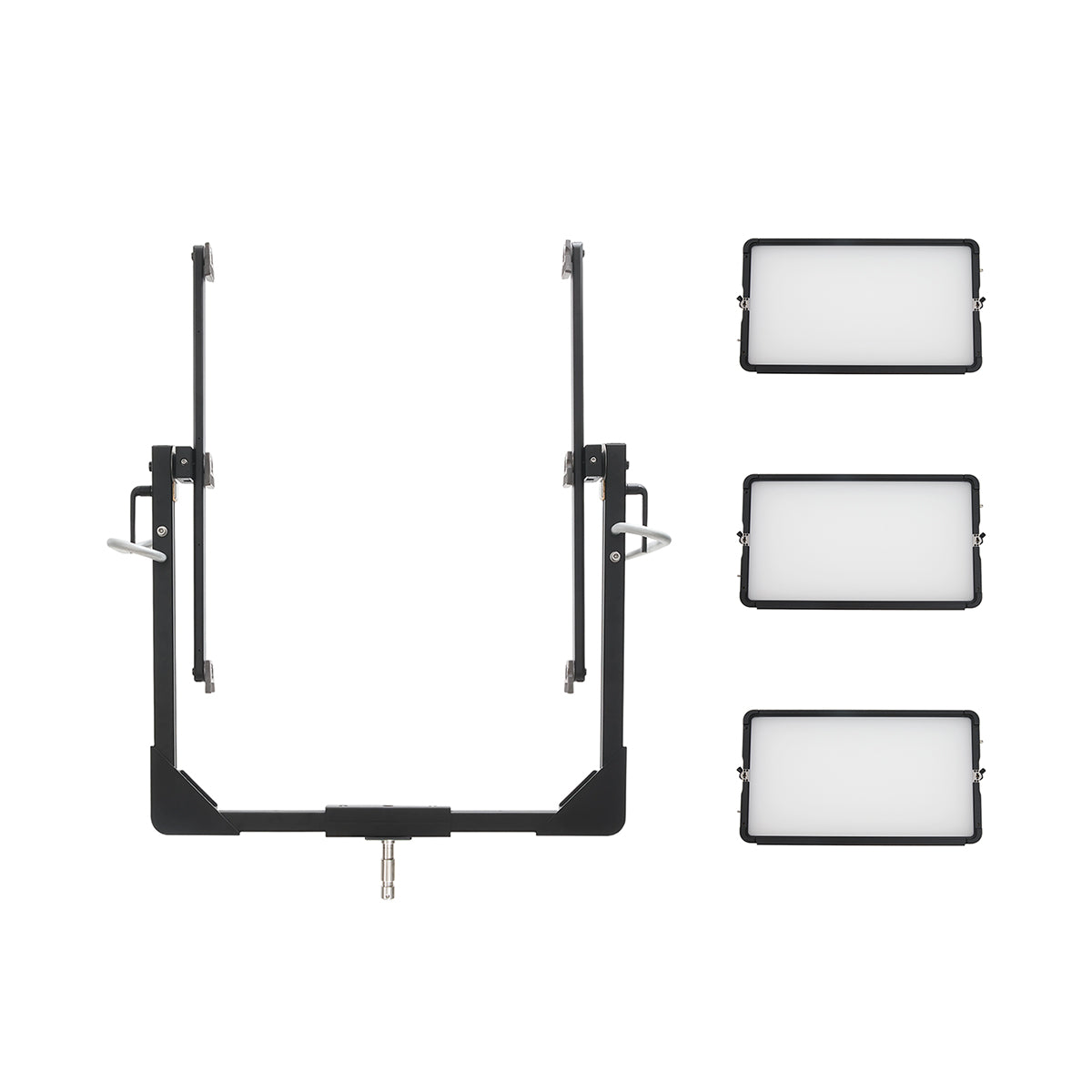

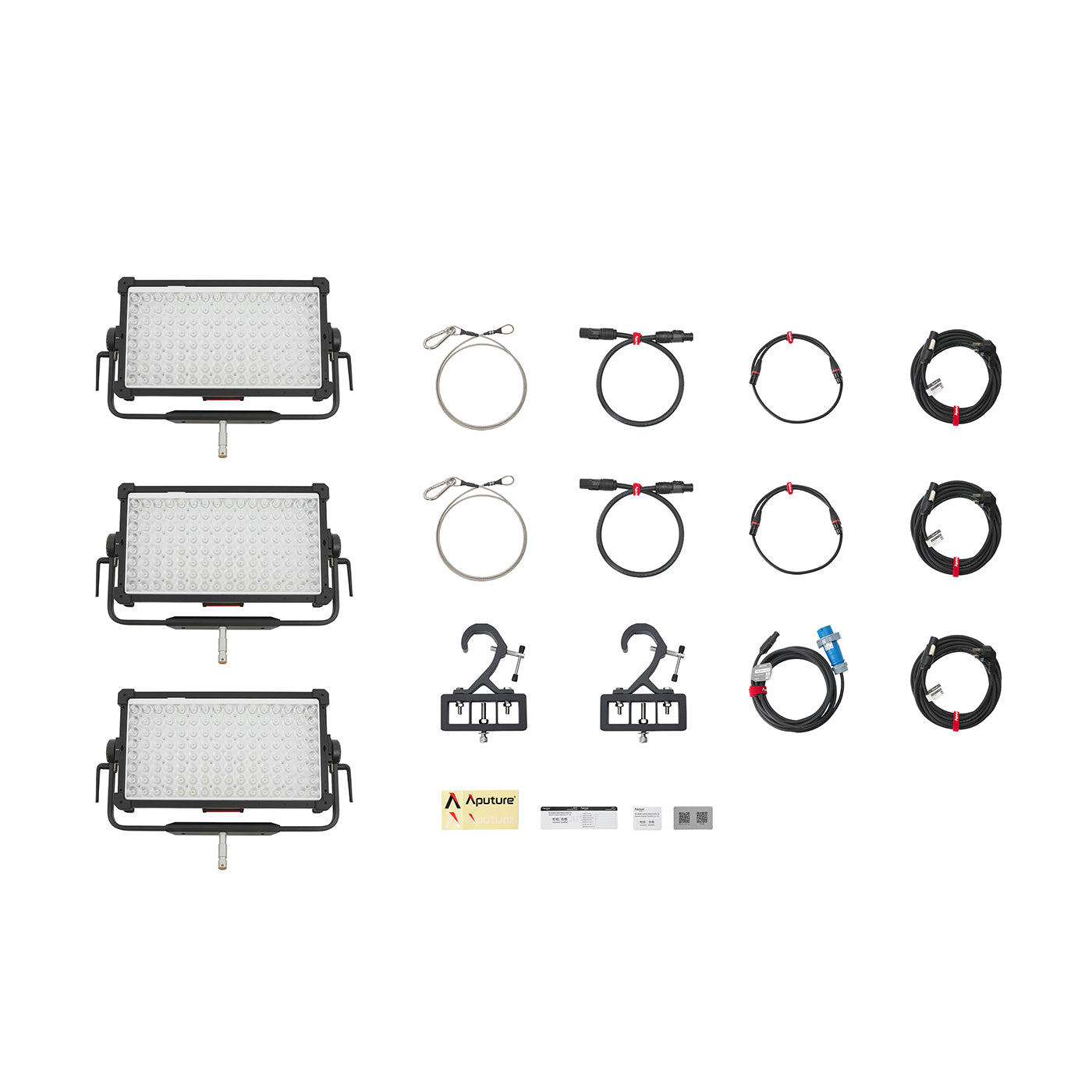

3x NOVA 9º 2x1 Lamp Head
-
3x NOVA 2x1 Removable Yoke with Junior Pin
-
3x NOVA 2x1 Flat Diffuser
-
3x AC Power Cable (6m)
-
3x Safety Chain (50cm)
-
1x NOVA 2x1 3-Light Yoke
-
2x C-Clamp with Riser
-
2x 5-Pin XLR Male to Female DMX Cable (1.0m)
-
2x NAC3F-TRUE1-L to NAC3M-TRUE1-L AC Power Passthrough Cable (0.9m)
-
2x Safety Chain (1.3m)
-
1x RCAC3F-X Bare Ends AC Power Cable (6m) (20A Max)
| Single Light Fixture | |
|---|---|
| LED Chipset | BLAIR |
| Color Temperature | 1800 to 20,000K |
| Color Modes | Full RGB Tuning |
| Color Accuracy Standard | CRI ≥95 TLCI ≥95 SSI(Tungsten) 89 SSI(D56) 86 |
| Cooling System | Active (onboard fans) |
| Dimming | Yes, 0.1 to 100% |
| Display | LCD |
| Photometrics - No Modifier | 1800K 5m: 19,590 LUX / 1,819 FC 2500K 5m: 25,410 LUX / 2,365 FC 3200K 5m: 28,090 LUX / 2,611 FC 4300K 5m: 29,980 LUX / 2,786 FC 5600K 5m: 29,730 LUX / 2,765 FC 6500K 5m: 29,270 LUX / 2,719 FC 10,000K 5m: 27,150 LUX / 2,524 FC 20,000K 5m: 24,210 LUX / 2,249 FC |
| Lamp Head (Without Yoke) | 69.1 × 38.8 ×13.6 cm 27.2 × 15.3 × 5.4 in |
| Fixture Weight | 43.32lbs / 19.65kg |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Connectors | |
|---|---|
| Control Ports | 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking RJ45 |
| Control Methods | Onboard, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM |
| Firmware Upgrade Methods | Sidus Link, Sidus Link Pro, USB-A |
| Wireless Range (Bluetooth & CRMX) | ≤100m / ≤328.1ft |
| Mounting | |
|---|---|
| Fixture Mount | Junior Pin |
| Power | |
|---|---|
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter, External Battery |
| Max Power Consumption | 800 W |
| Max Power Output | 650 W |
| Dimensions | |
|---|---|
| 3-Light Array (Fully Assembled) | 105.2 x 153.0 x 18.6cm 41.4 x 60.2 x 7.3in |
| Weight | |
|---|---|
| 3-Light Array (Fully Assembled) | 64.95 kg / 143.19 lbs |
