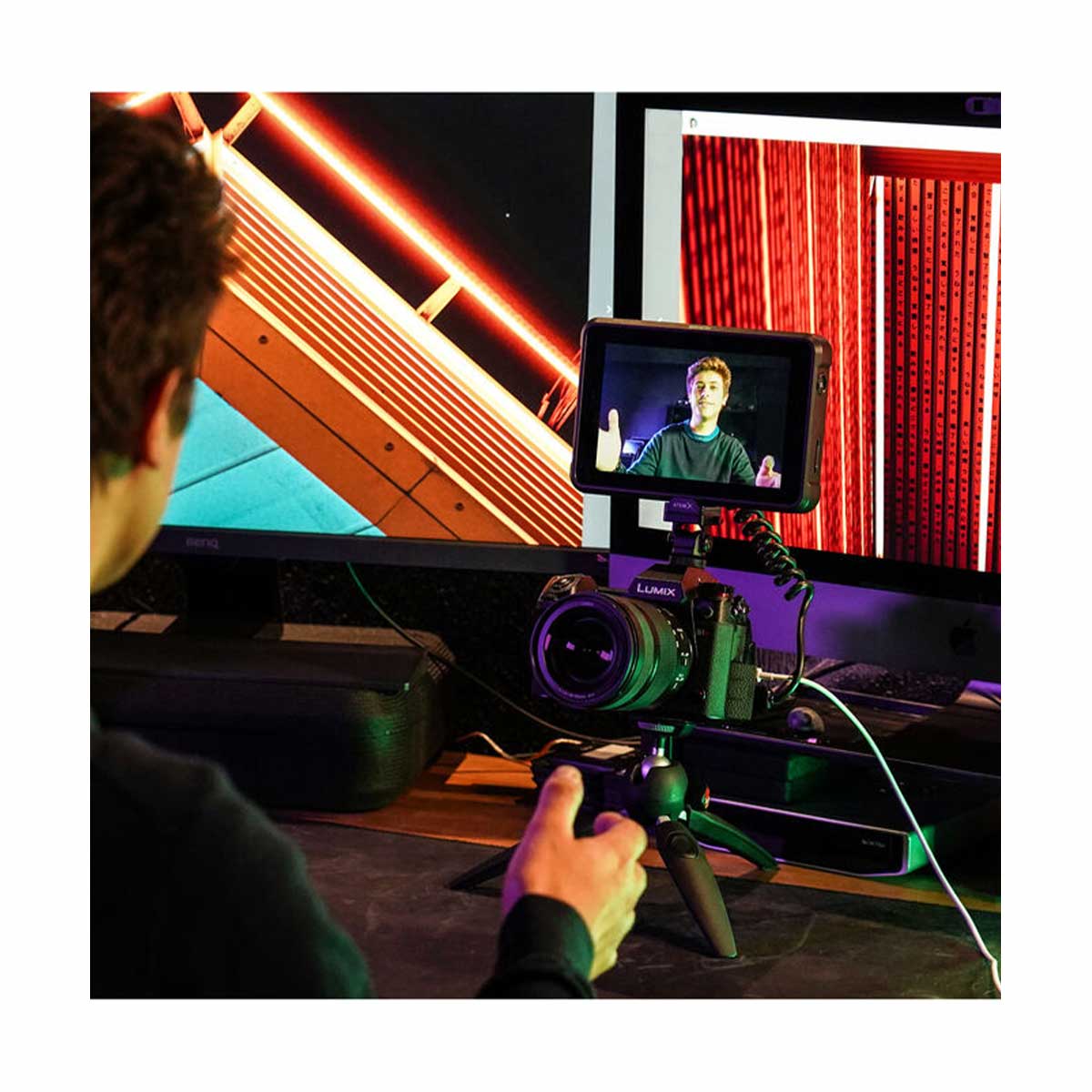

Atomos Shinobi 7" 4K HDMI/SDI HDR Monitor

IN STOCK
AtomosSKU: SHINOBI7

Price:
Sale price$599.00
Configurations

  • Real-time HDR in the field
  • Brightness of 2200nit
  • Input Resolution up to 4096x2048
  • Instant LUT preview with Built-in 3D LUT box
  • Shinobi 7" 4K HDMI/SDI HDR Monitor

  • Universal Power Adapter

  • Quick Start guide

  • Limited 1-Year Warranty (Extendable to 3-Years)

Related Products

Description

Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 7”
Resolution 1920 x 1080
PPI 325
Bit depth 10-bit (8+2 FRC)
Aspect ratio 16:9 native
Backlight Type Edge lit
Brightness (cdm2 / nits) 2200 +/- 10%
Color Gamut REC709 HDTV
Calibration support Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Technology IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit
Anamorphic de-squeeze 2x, 1.5x, 1.33x
Look up table (LUT) support 3D LUT (.cube format) *Extended Support planned
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion HLG / PQ
Video Input
HDMI 1 x HDMI (2.0) 4Kp60
SDI 1 x 3G SDI - 2k p60
Bit Depth 8/10-bit Video
Video Chroma Subsampling YCbCr 420 & 422
Video Output
HDMI 1 x HDMI (2.0) 4Kp60
SDI Play out 1 x 3G SDI - 2Kp60
Video Signal Conversion
HDMI to SDI Yes
SDI to HDMI Yes
Audio In/Out
HDMI 2ch 24-bit, input dependent
SDI 8ch 24-bit, input dependent
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI and SDI
Resolution and Frame Rates (Record, Monitor & Playback)
4k DCI Monitor Only: DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
4k UHD Monitor Only: UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
2K DCI 2046 x 1080 Monitor Only: DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
FHD 1920 x 1080 Progressive Monitor Only: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p
FHD 1920 x 1080 Interlaced Monitor Only: 50/59.94/60i 1280 x 720p: 50/59.94/60p
Supported media
SD SD Card slot for LUTs / Firmware
File System ExFAT
On screen tools
MultiScope Analysis View Image, selectable Waveform, Histogram, Vectorscopes and Audio bars
Waveform Yes, 3 size / Position
Histogram Luma and RGB
RGB parade Yes, 3 size / position
Vector scope Yes, 2 size / position and zoom
1 x Zoom Yes. 1:1 Pixel mapping for 4K
2 x Zoom Yes
4 x Zoom Yes
Focus peaking Color selected / focus assist sharpening / threshold setting / color / mono / edges only
False color Yes
Zebra Yes, adjustable
Isolate color channel Blue only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 191:1, 4:5
Safe areas Action and Graphic
Grid markers 9 Grid
Anamorphic desqueeze 1.25x, 1.33x, 1.5x, 1.8x, 2x
Display Flip Vertical and Horizontal selfie mode
Onboard Signal Processing
4K UHD Downscale for HD Yes
DCI Crop Yes
External Device Control
Serial 2.5mm Jack USB-C to Serial (ATOMCAB018)
USB Camera control for supported cameras in future firmware release
RJ45 Camera control for supported cameras in future firmware release
Power
Input voltage (battery) 6.2V to 16.8V
Operating power 5.8V - 7.2V
Compatible batteries 2 x NPF L series
Battery time 5200mAh - up to 2hrs, 7800mAh - up to 3hrs
Continuous power Dual battery slots
DC In Locking DC jack
Dtap Via optional DTap to DC cable
General
Weight 577g / 1.04lb
Dimensions (W x H x D) 7.8 x 5.24 x 1.54" / 198 x 133 x 39mm
Mounting points 1 x Anti rotation 1/4" / 3/8 top and bottom
Cooling Actively controlled fan and heat sink
Multi-function button Power / lock Screen
Construction Polycarbonate ABS Plastic
