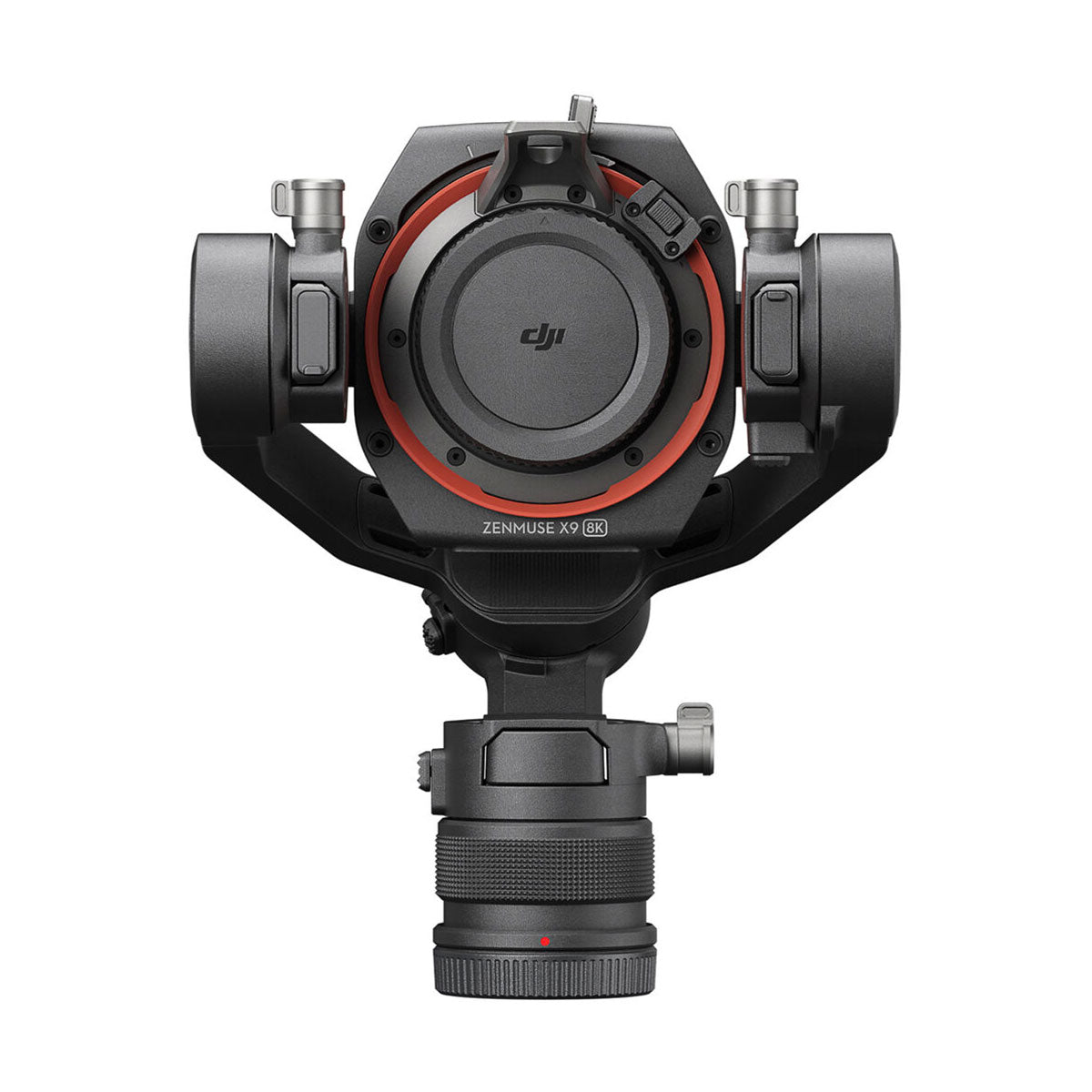

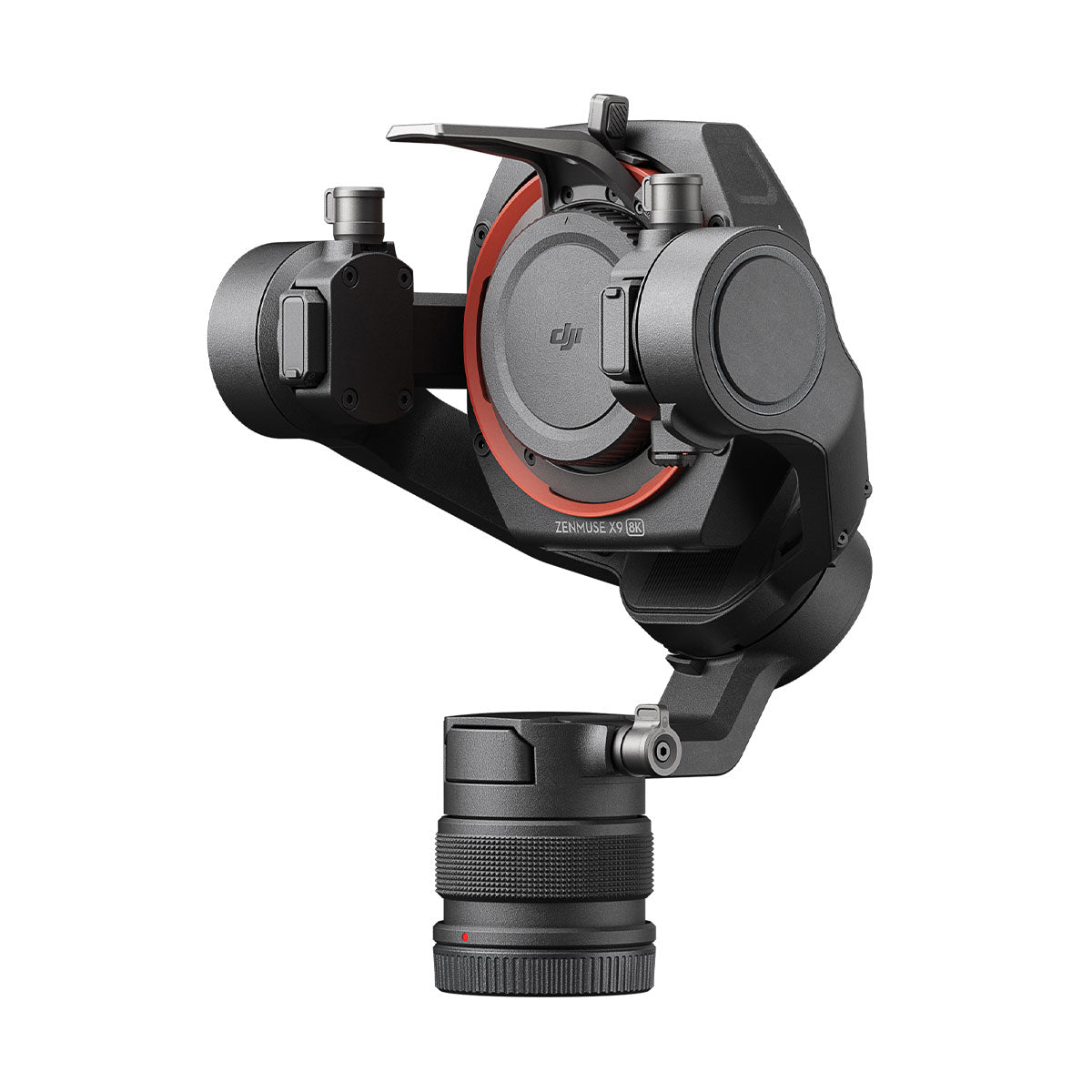

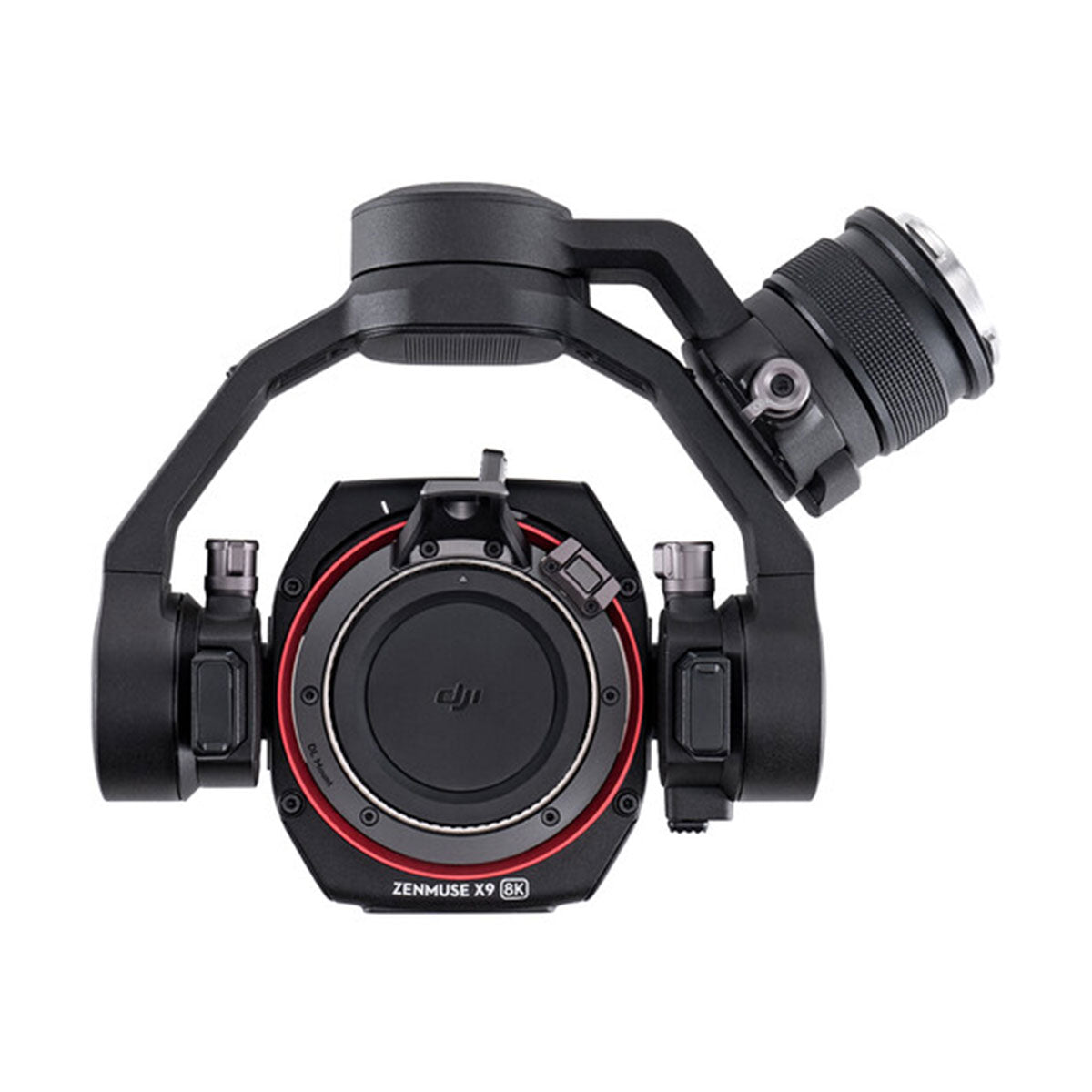

DJI Zenmuse X9-8K Gimbal Camera

DJISKU: CP.RN.00000341.01

Price:
Sale price$3,599.00
  • Highly Integrated Modular Design
  • Full-Frame Gimbal Camera
  • 4-Axis Active Stabilization
  • Wireless Transmission and Control System
Related Products

Description

DJI Zenmuse X9-8K Gimbal Camera
Sensor Size 35mm full-frame CMOS image sensor
Base Lens Mount DL Mount, and support for other mount units
Supported Lens Mounts DL Mount (standard), E-Mount, L-Mount, M-Mount, and PL-Mount
Dynamic Range 14+ stops
White Balance Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
Gamma D-Log, Rec.709, HLG
EI Range X9-8K: EI 200 to EI 6400
With Dynamic Range Expansion off: Dual native ISO 320/1600
With Dynamic Range Expansion on: Dual native ISO 800/4000
Shutter Speed Electronic Rolling Shutter 1/24s-1/8000s
ND Built-in 9-stop ND filters:
Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
Focus Control Autofocus, Manual Focus, Automated Manual Focus
Supported File System exFAT
Recording Format
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422
H.264 (4:2:0 10-bit)
View detailed list here.
Storage Media DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
DJI PROSSD 1TB Recording Format No restriction on recording format
CFexpress 2.0 Type B Recording Format ProRes 422 HQ:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
USB-C SSD Recording Format ProRes 422 HQ:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
Built-in Mic Built-in 2-ch stereo
Audio Format LPCM 2-ch, 24-bit 48kHz
Gimbal Weight Approx. 2.29 lbs / 1.04 kg
Gimbal
Mechanical Range Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-Axis Range: approx. 130mm
Controllable Range Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°
Max Control Speed (°/s) DJI Master Wheels or DJI Force Pro:
Tilt: 360°/s
Roll: 360°/s
Pan: 360°/s
Ronin 4D Hand Grips:
Tilt: 120°/s
Roll: 120°/s
Pan: 120°/s
Maximum Z-Axis Payload 4.41 lbs / 2000 g (including 2.29 lbs / 1040 g gimbal)
Angular Vibration Range ±0.01°
DJI O3 Pro Video Transmission
Max Transmission Distance 20,000 ft (approx. 6km, FCC-compliant)
Max Transmission Resolution and Frame Rate 1920×1080 @60fps
Minimum End-to-End Latency 100 ms or 68 ms
Wireless Frequency Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
Transmitter Power (EIRP) 2.400-2.4835 GHz:
≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz:
<23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz:
<30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC); <23 dBm (CE/MIC)
5.725-5.850 GHz:
<33 dBm (FCC/SRRC); <14 dBm (CE)
Max Bandwidth 40 MHz
Max Bitrate 50 Mbps
Interface
X9 Gimbal LiDAR Range Finder/ Focus Motor Port × 2
