- Live stream up to 1080p at 60fps
- Turns your DSLR or mirrorless camera into a professional webcam
- Functions as a switcher when paired with the Shogun7
- Plug and play interface
Convert, Connect, Stream
Connect bridges the Atomos world of professional recording and monitoring with popular streaming platforms such as YouTube, Twitch and OBS. Use your Atomos device for professional shoot setup and recording, then plug-in connect to simply convert the HDMI output to USB on the go for streaming on your Mac or PC. Connect accepts up to 4K30p video and is capable of up to 1080p60 output over USB – incredible streaming quality at an entry level price point.
Plug and go like a pro

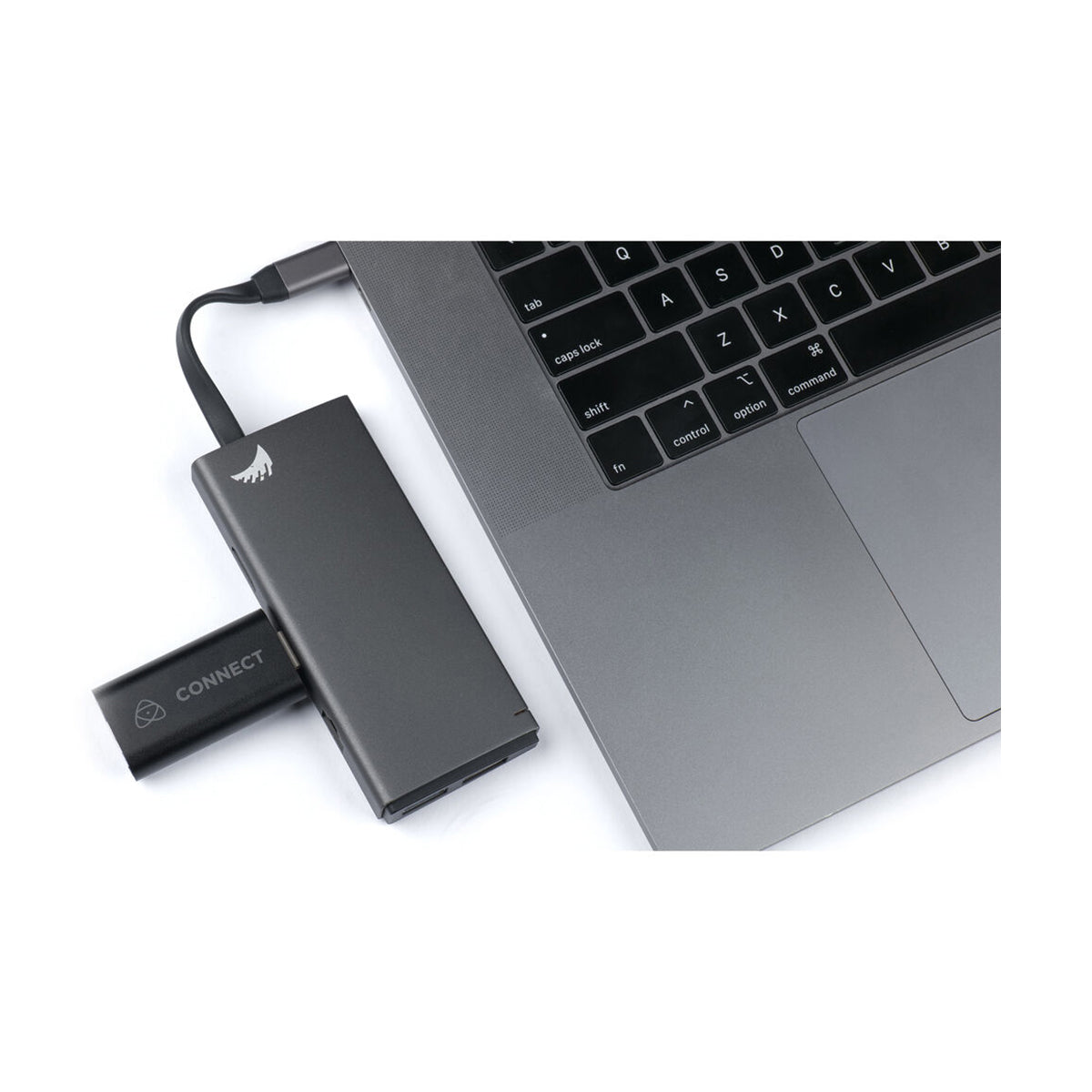

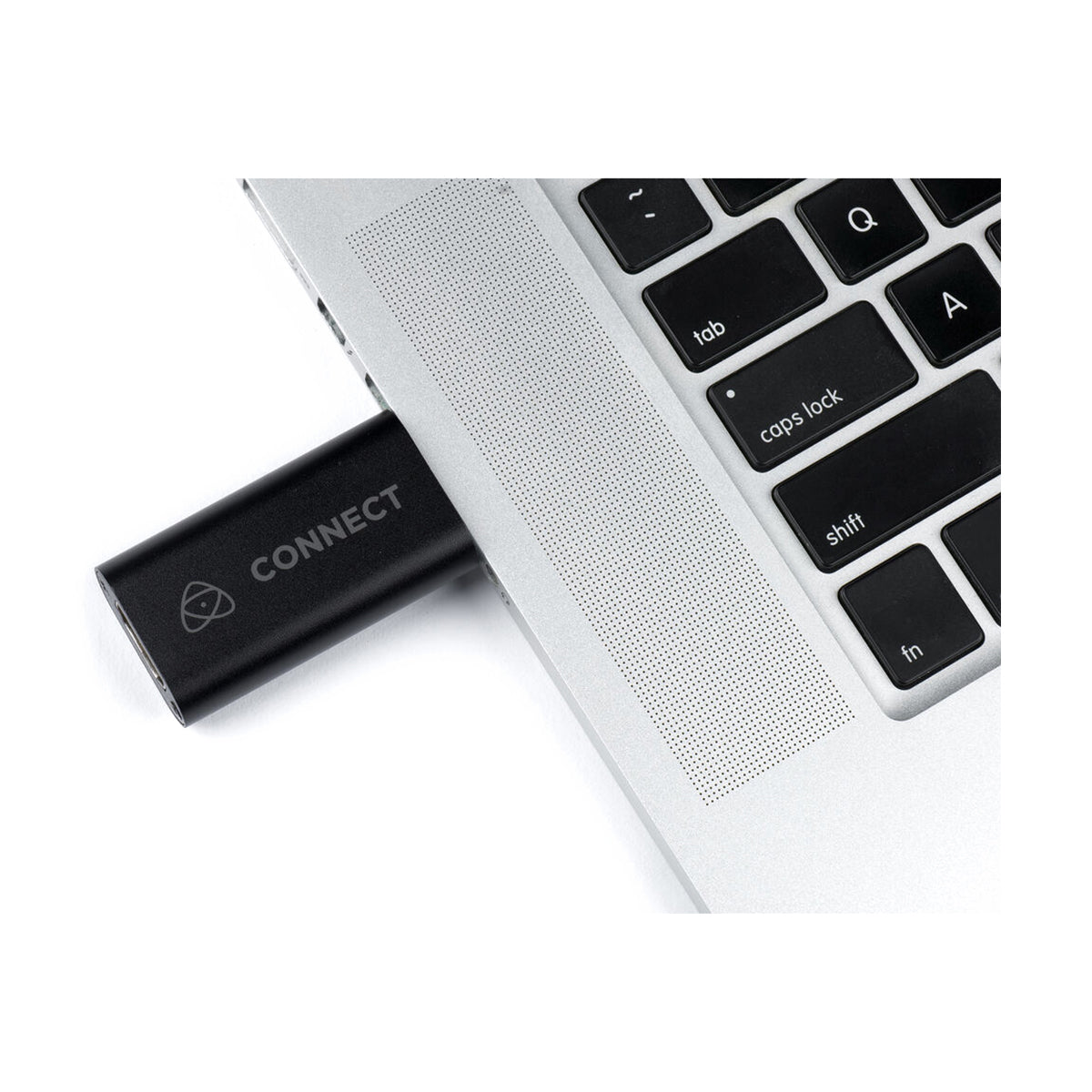

With a slim 12mm profile, Connect is sleek enough to sit directly off your laptop or computer. No drivers are required and no power supply either, meaning it really is a simple matter of connecting your Atomos or HDMI device to your Mac or PC to start producing like a pro.

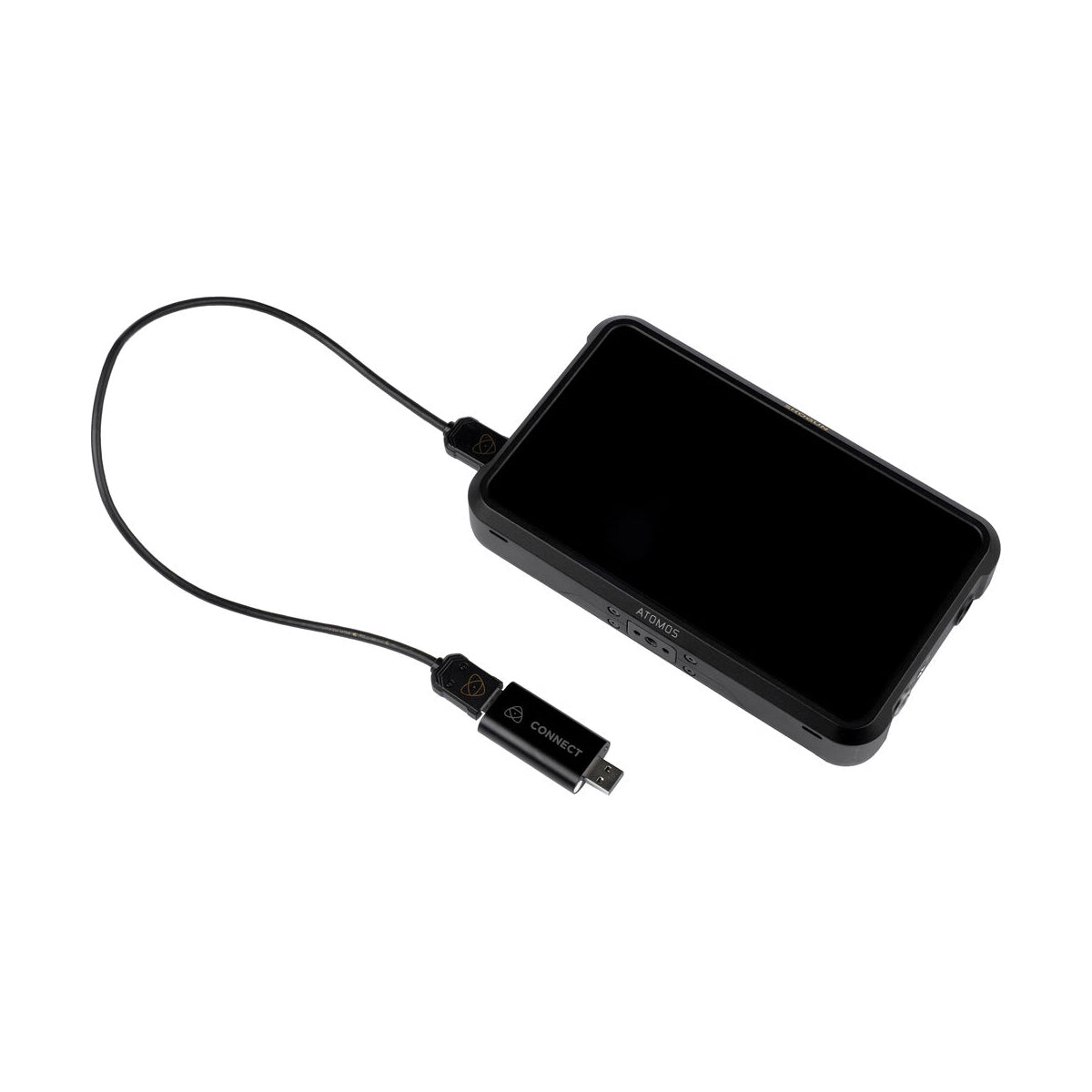

Shogun 7 + Connect — tame multicamera streaming!
The Atomos Shogun7 allows you to monitor and record up to four 1080p60 streams simultaneously and then cue and switch in real-time with a simple touch of the screen. Additionally, the Shogun7 is able to accept asynchronous feeds (sources don’t need to be locked), allowing the user to use more affordable cameras for multi camera production. Adding in Connect, lets you output the switched feed for live streaming on your Mac or PC. This makes the Shogun7 Connect package one of the easiest and most affordable options for professional switching.
Transforms your Camera to a Pro Webcam
Even without an Atomos monitor-recorder, Connect transforms your HDMI camera to a powerful professional webcam. No drivers required, plug in Connect and go live instantly.
Simplify your shoots with no-fuss live streaming
Connect works with any HDMI device including the entire Atomos range, is simple to use, has universal support from popular streaming platforms and is an affordable way for gamers, vloggers and education facilities to up their streaming game using the professional Atomos monitor-recorder ecosystem.
|HDMI Input||up to 4K30|
|USB Output Resolution||up to 1080p60 (YUV.JPEG)|
|Color Depth||Supports 8/10/12-bit deep color|
|HDMI Support||Certified AWG26 HDMI cables up to 15 meters|
|Software Support||Popular acquisition software on Windows, Android & Mac OS|
|USB Support||Conforms to USB Video and UVC standard |
Conforms to USB Audio UAC standard (L-PCM format)
|Power||No external power required|
|Maximum Working Current||0.4A / 5V DC|
|Operating Temperature Range||-10 to +55 °C|
|Dimensions (L x W x H)||64 x 28 x 13mm / 2.52 x 0.98 x 0.51"|
|Weight||21.4g / 0.75 oz|
|PC i5-3400 or above|
|NB i7-3537U 2.0GHZ or above.|
|Graphics Card||PC NVIDIA GT630 or above |
NC NVIDIA GT735M or above
|Run Memory||4G RAM|
