DJI Focus Pro All-In-One Combo

DJISKU: CP.RN.00000403.01

Price:
Sale price$1,849.00

  • 20-Meter Subject Focusing, 76,800 Ranging Points
  • Built-in Camera, Enhanced AI Recognition Algorithms
  • AMF Mode, Human-Machine Collaborative Focus Control
  • FIZ Lens Control, Magnetic Damping Tactile Feedback
  • Compatibility With DJI PRO Ecosystem

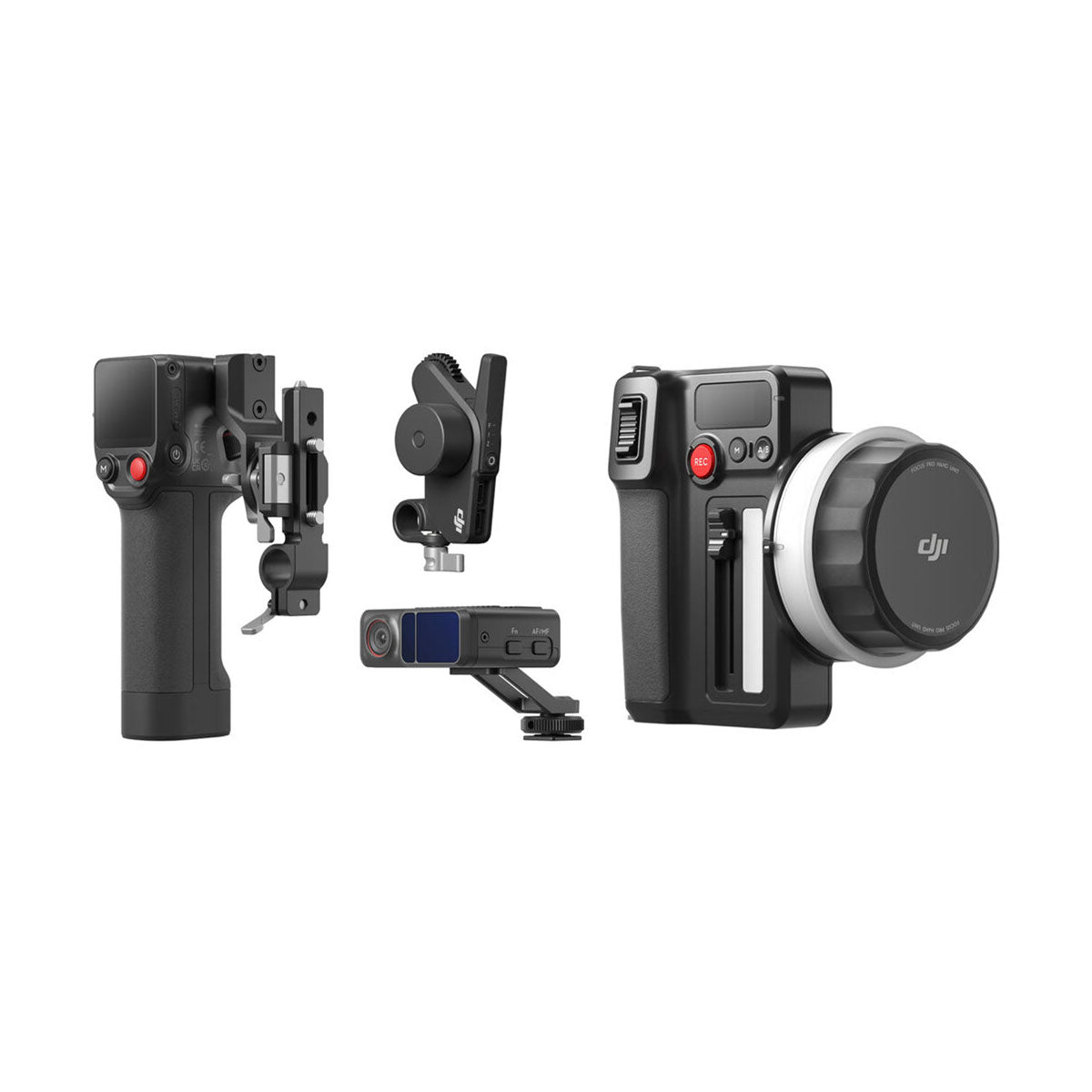

  • Focus Pro All-In-One Combo

  • LiDAR Range Finder (RS)
  • Multicamera USB-C Control Cable (11.8")

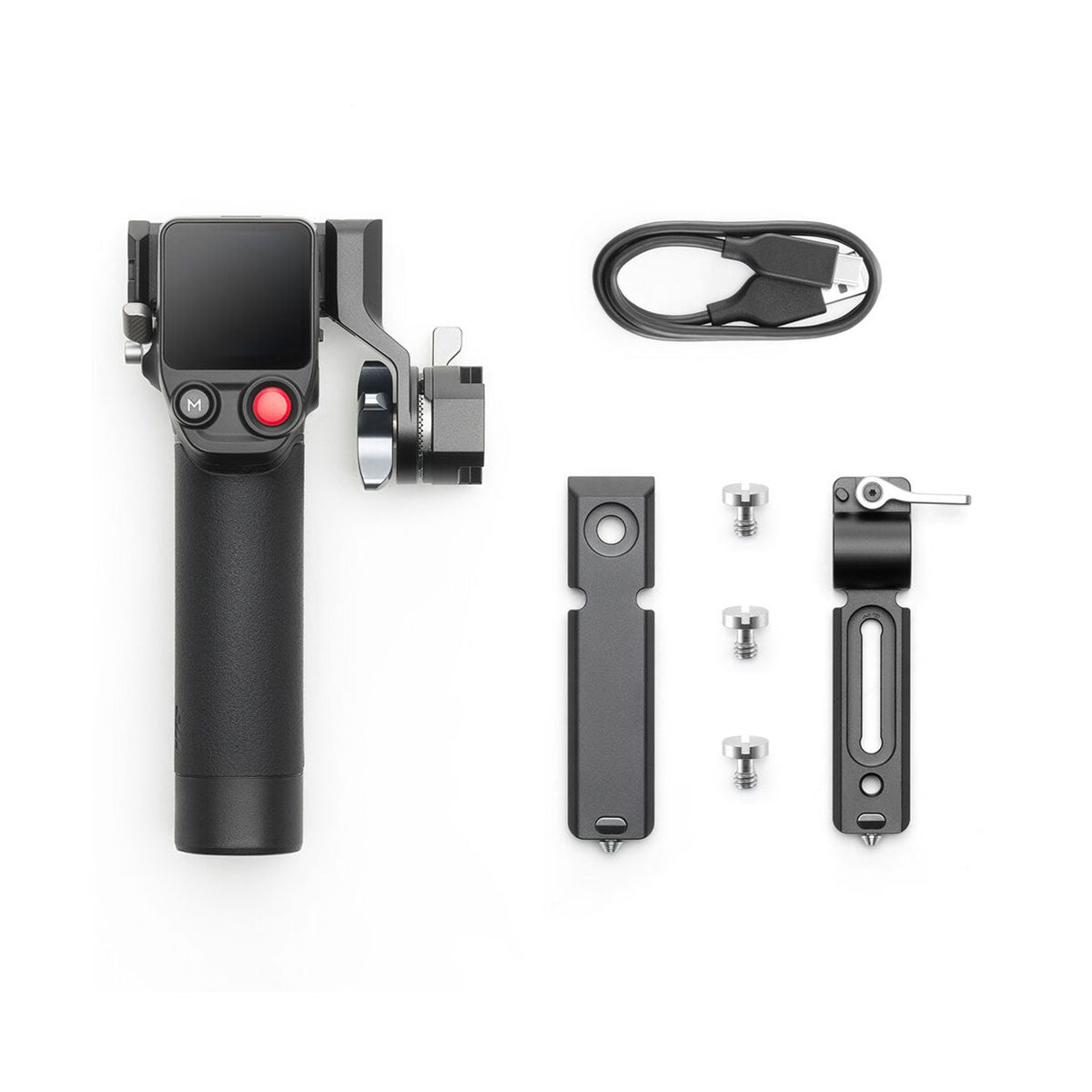

  • Focus Pro Grip

  • BG21 Battery Grip

  • NATO Mount Adapter

  • Side Rail Rod Adapter

  • Horizontal Side Rail Adapter

  • USB-C Charging Cable (15.7")

  • M4 Screw

  • 1/4"-20 Screw

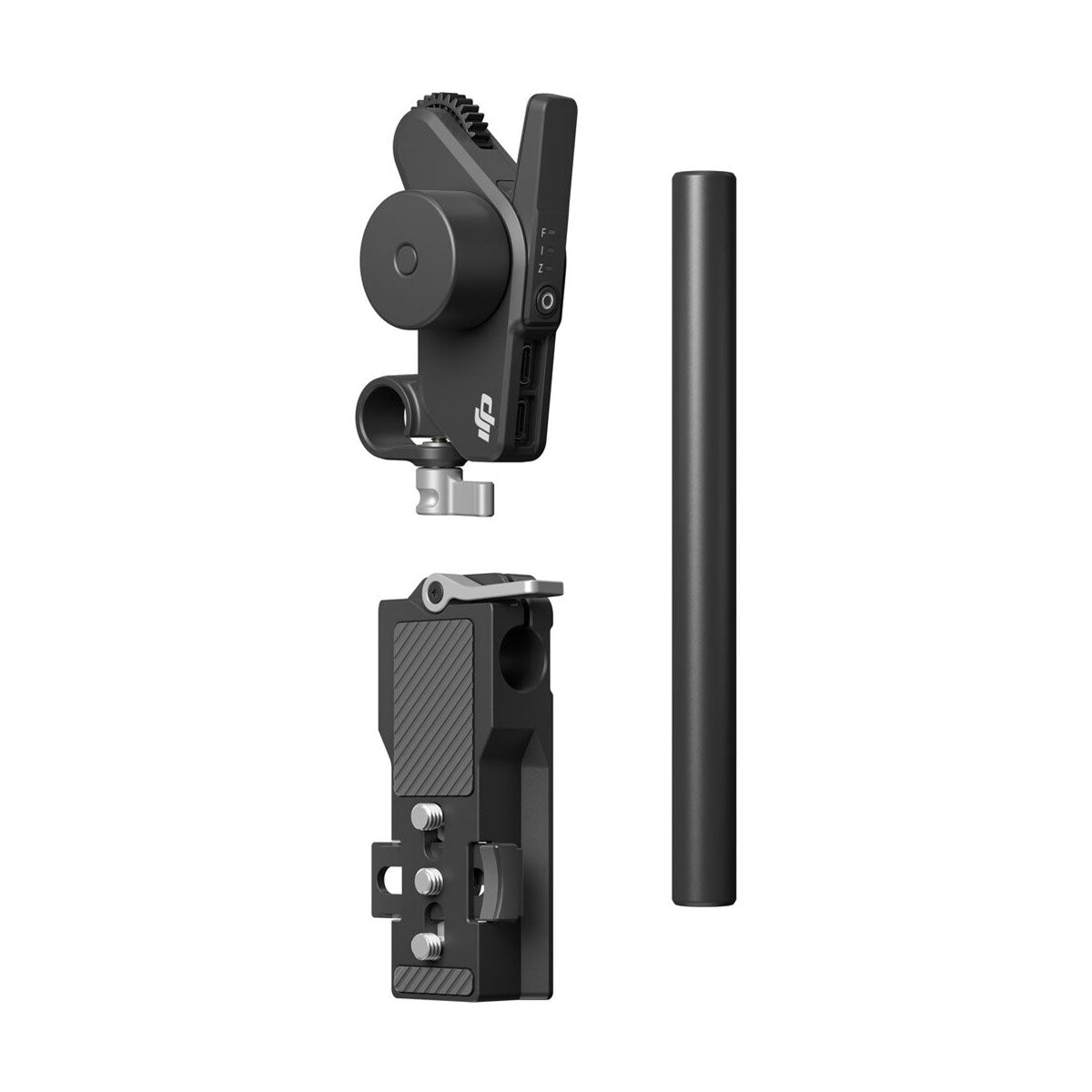

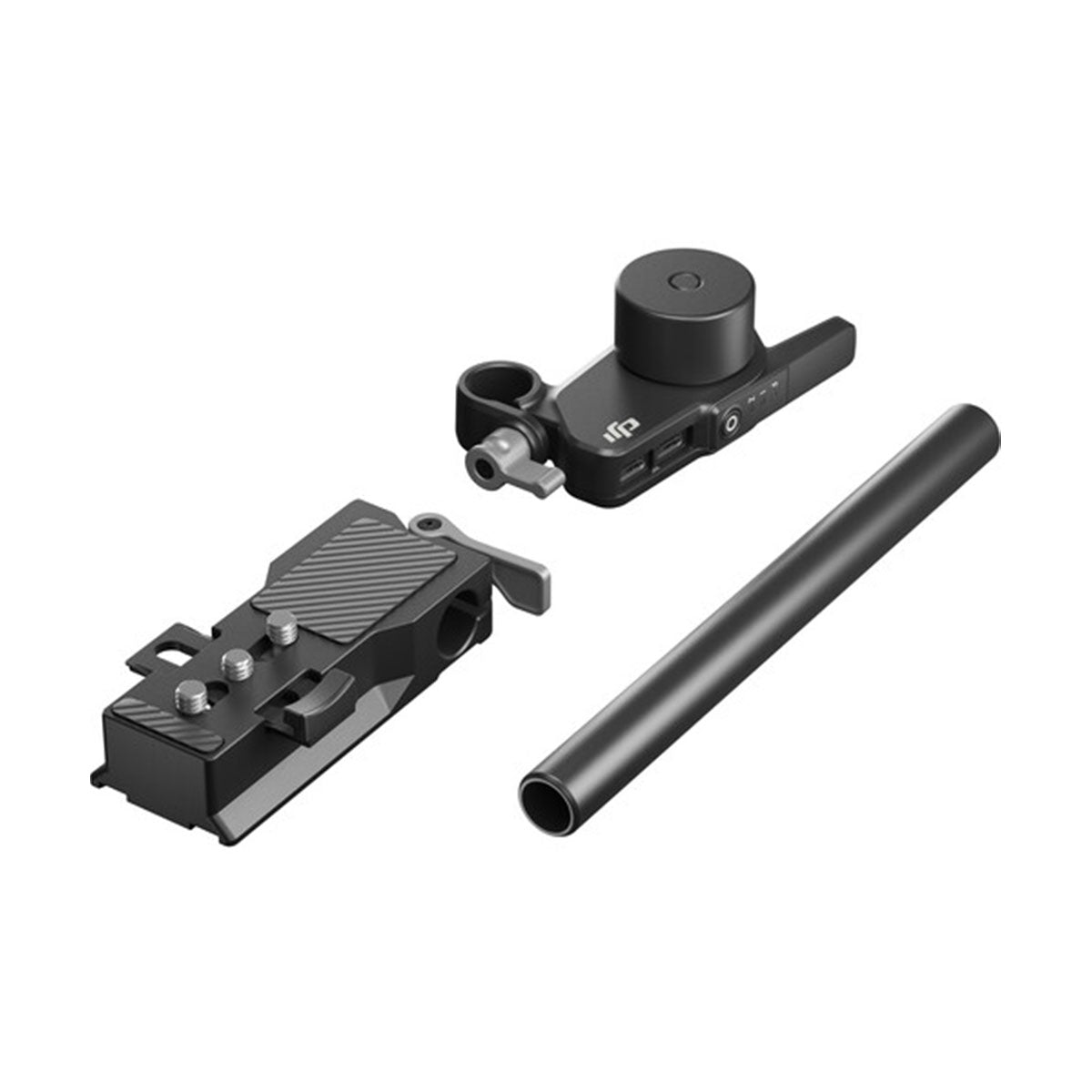

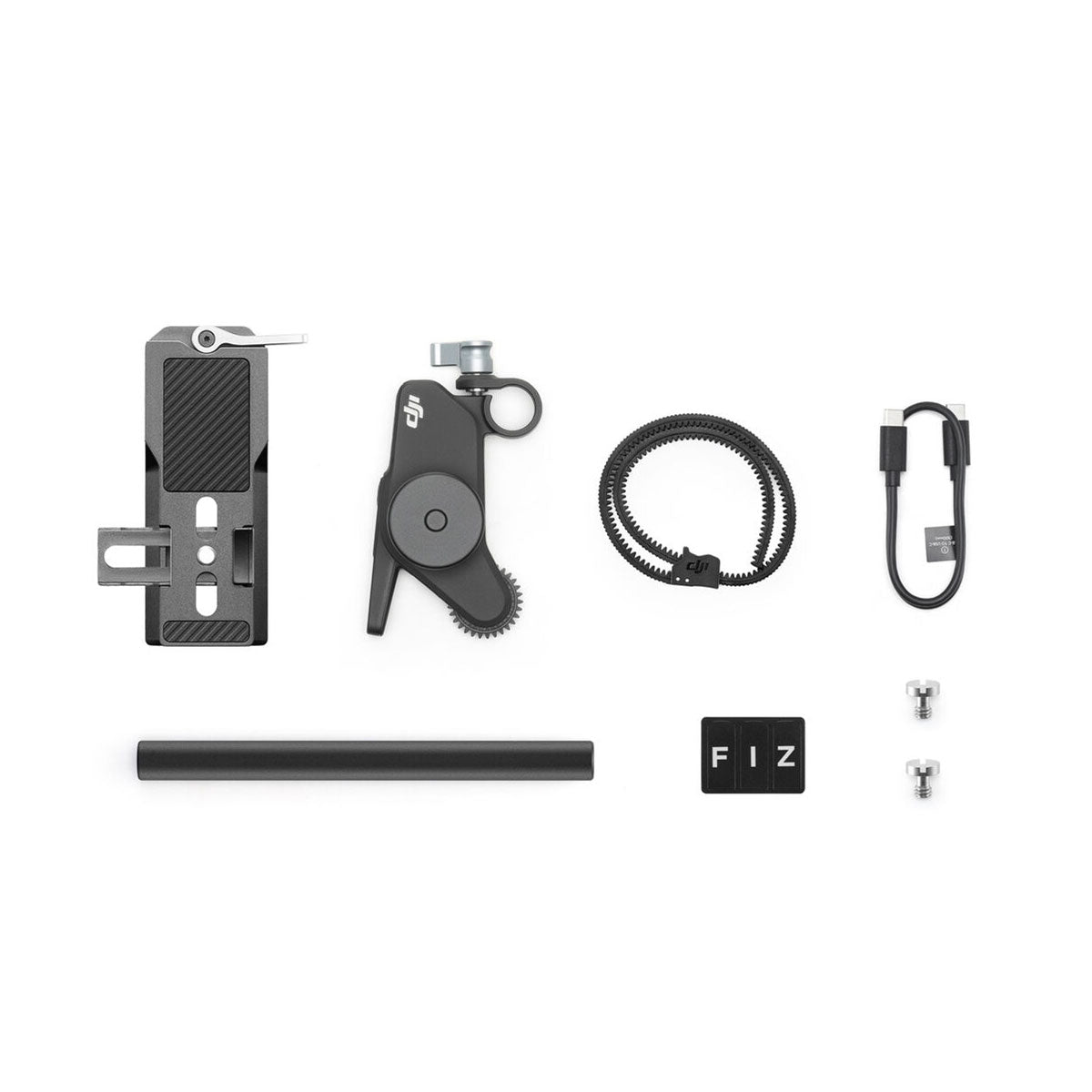

  • Focus Pro Motor

  • Rod Mount Kit

  • Focus Gear Strip

  • Multicamera USB-C Control Cable (11.8")

  • 15mm Rod

  • 1/4"-20 Screw

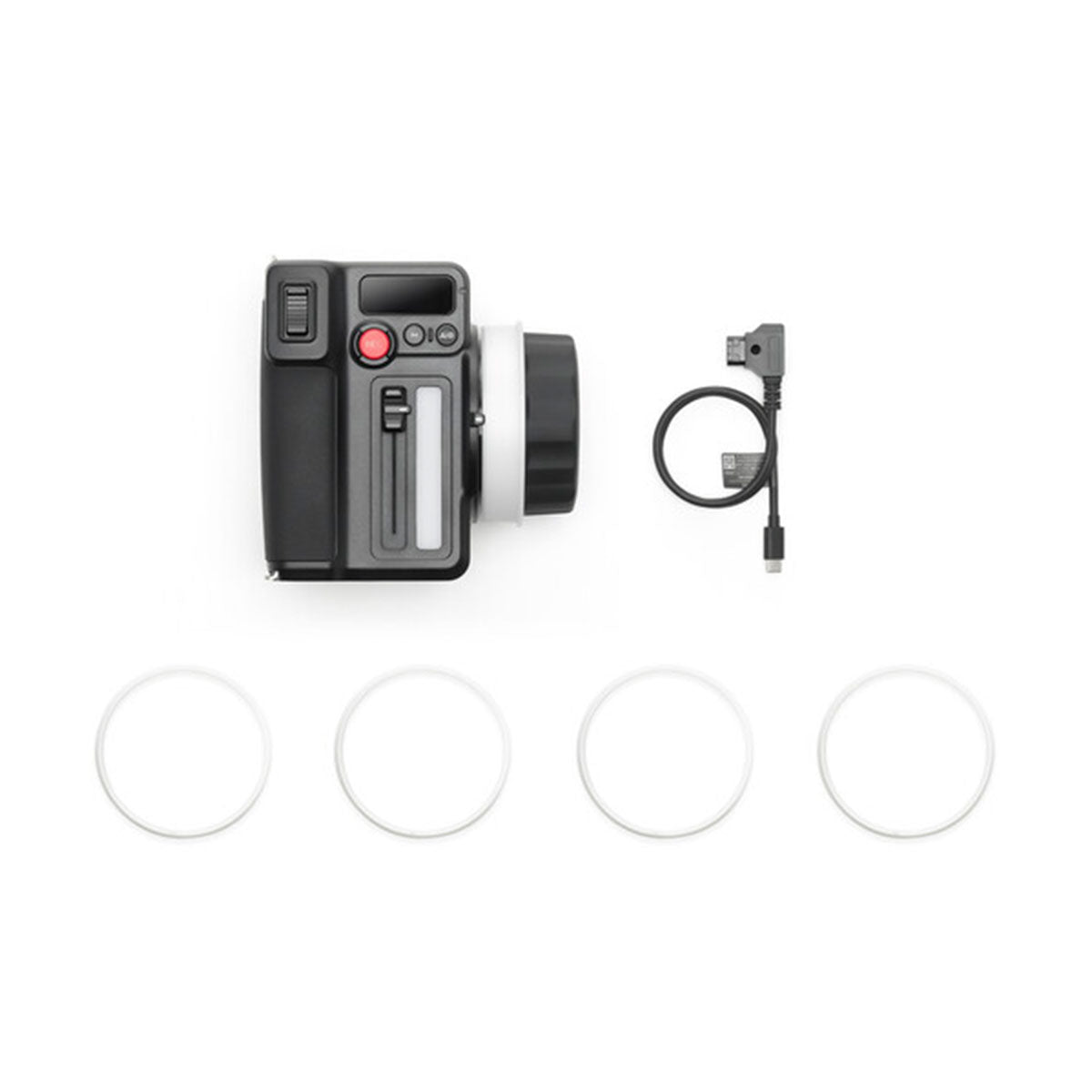

  • Focus Pro Hand Unit

  • D-Tap to USB-C Power Cable (19.7")

  • Focus Marking Ring

  • Focus Pro Carrying Case

  • Limited 1-Year Warranty

Related Products

Description

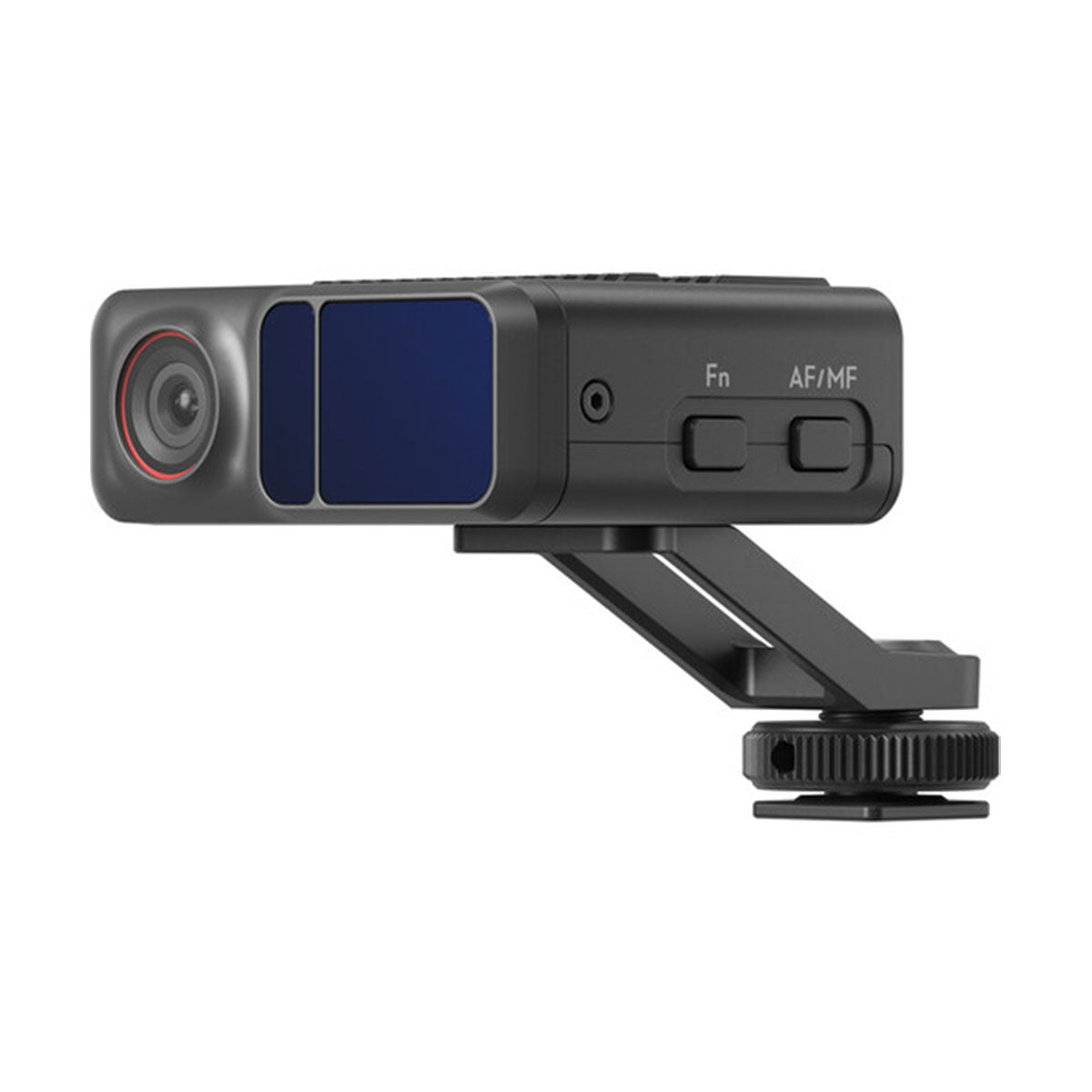

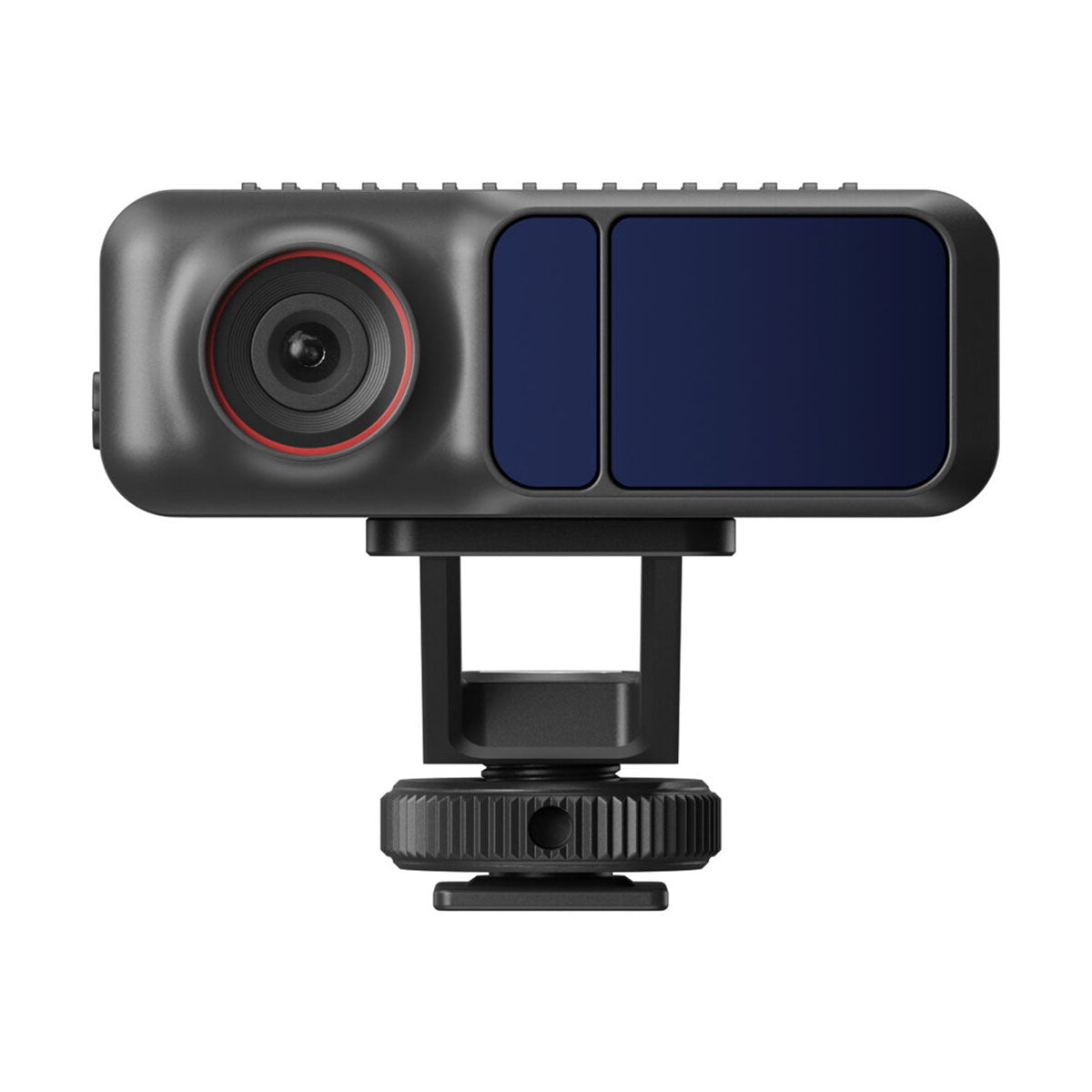

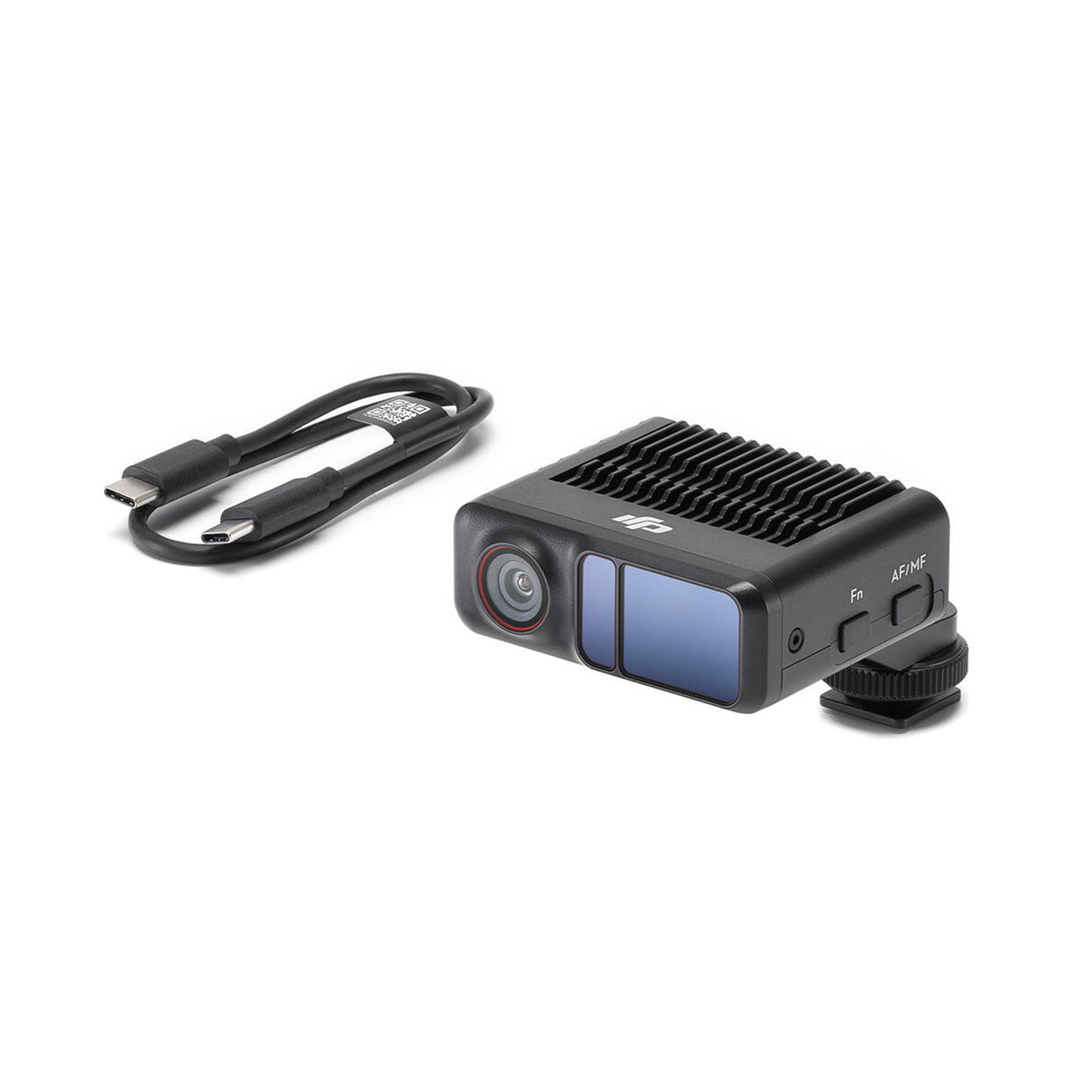

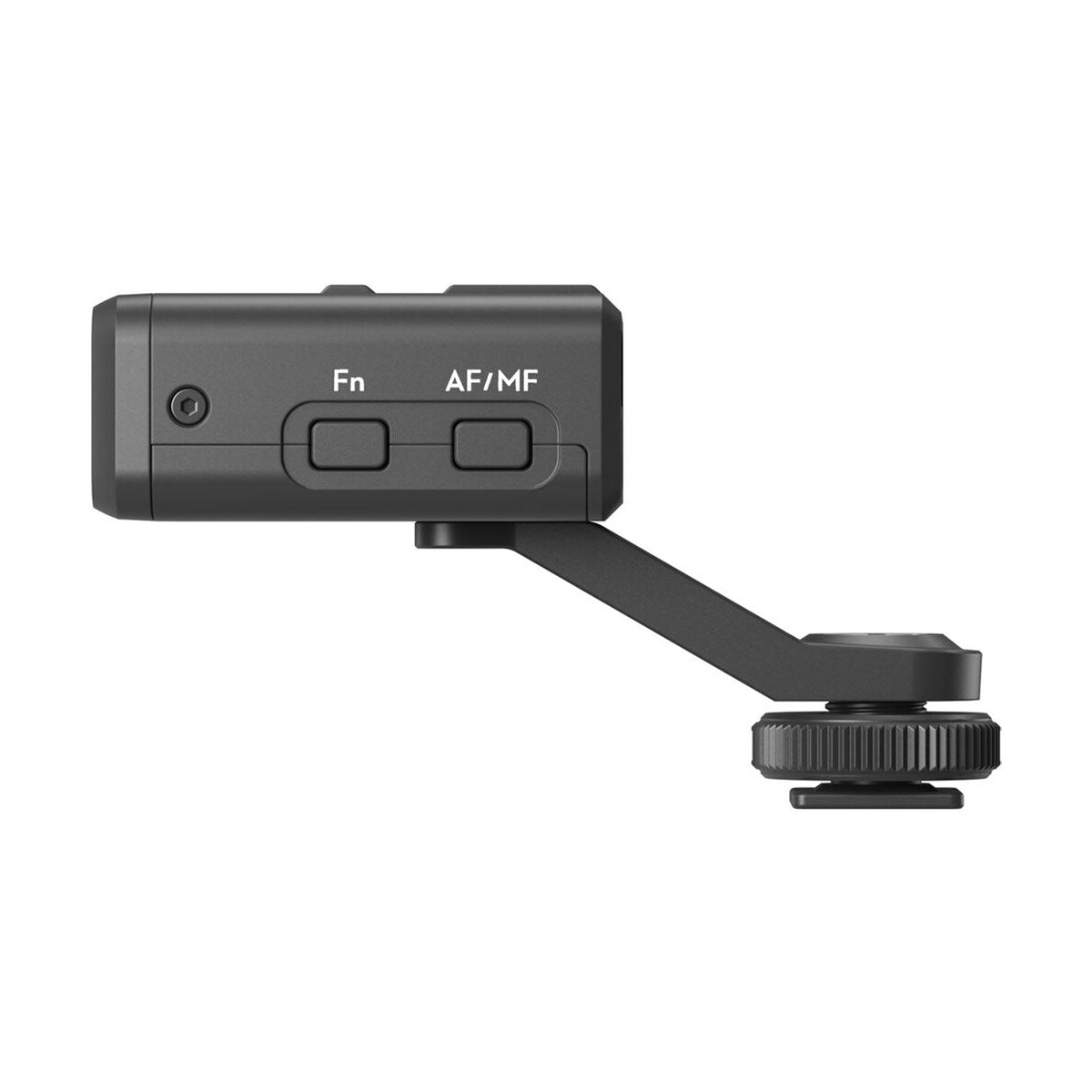

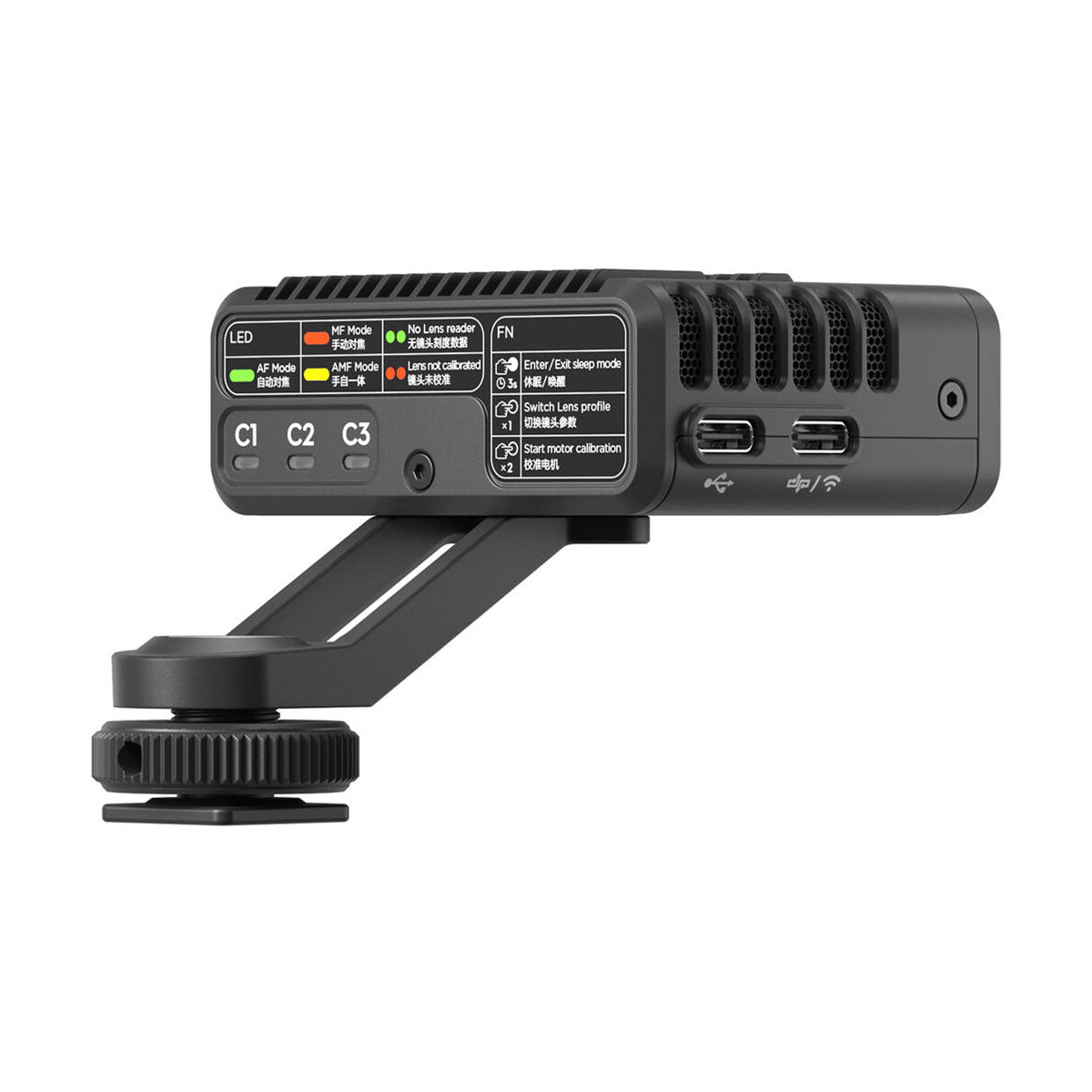

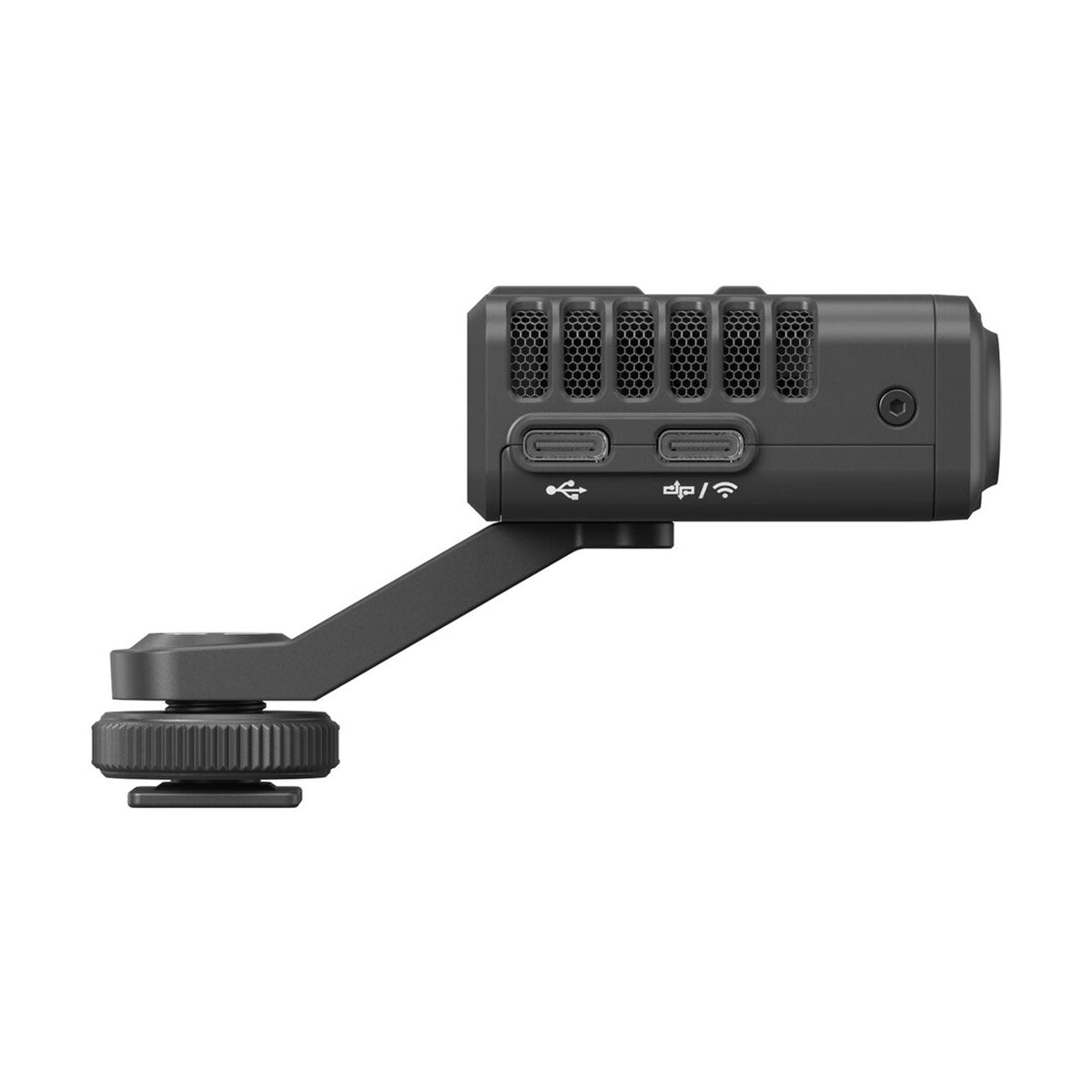

LiDAR
Accessory Port Cold Shoe
1/4"-20 Threaded Hole
USB-C Firmware Update Port (Power/USB)
USB-C Data Port (Power/CVBS/CAN)
Image Sensor Resolution: 1920×1440
FOV:
‌57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm
ToF Sensor Ranging Points: 76,800
Sensing Range: 0.5-20 m
FOV:
Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm (wide-angle mode)
Ranging Accuracy: ±1% to 3% (affected by the distance)
Machine Learning Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human, vehicle
Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack)
Electrical Properties ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V
Mounting Method and Position Can be mounted directly via cold shoe or using the 1/4" threaded hole
Operating Temperature -20° to 45° C (-4° to 113° F)
Dimensions (L x W x H) Approx. 2.68 x 0.98 x 2.24" / 68 × 25 × 57mm
Weight Approx. 0.31 lbs / 140g

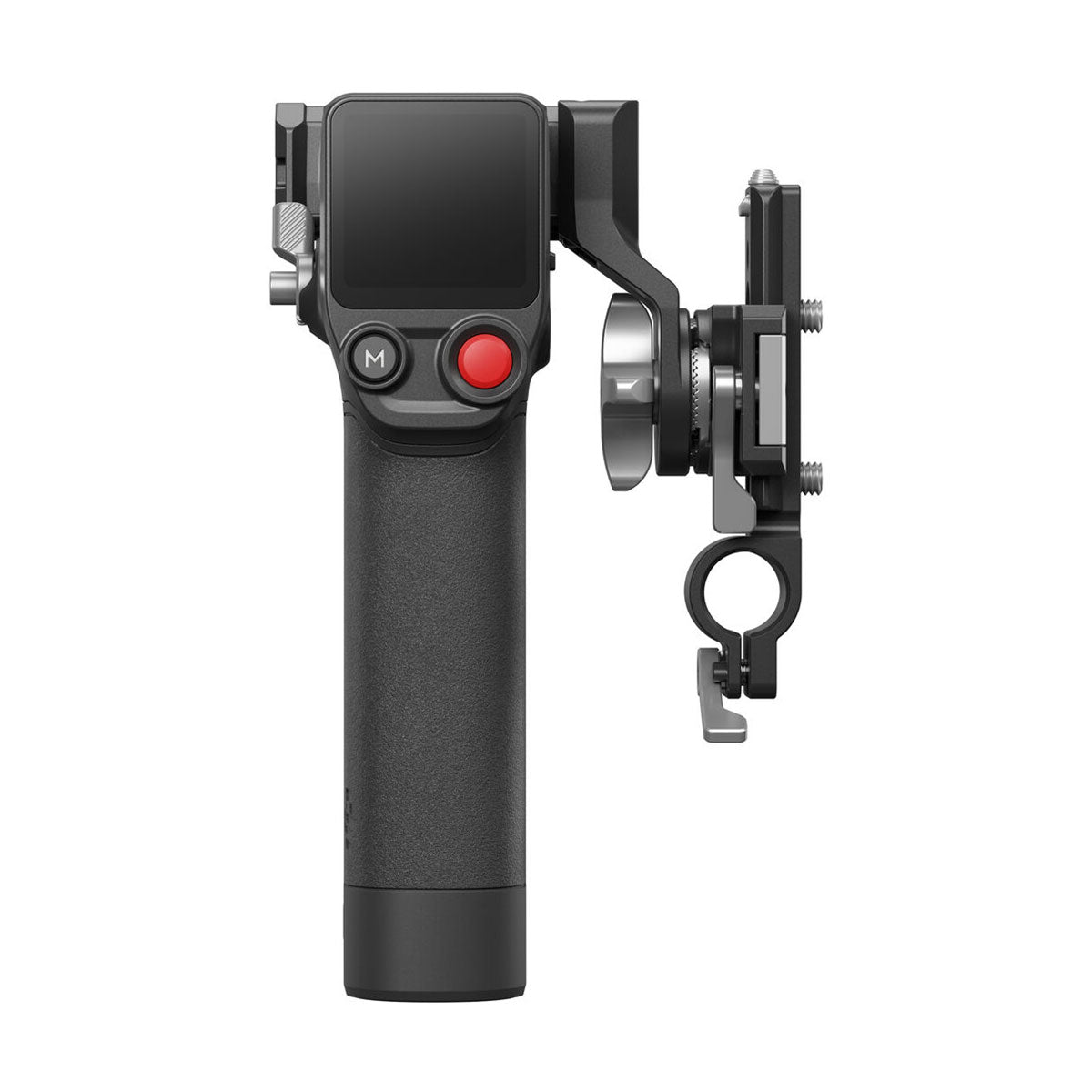

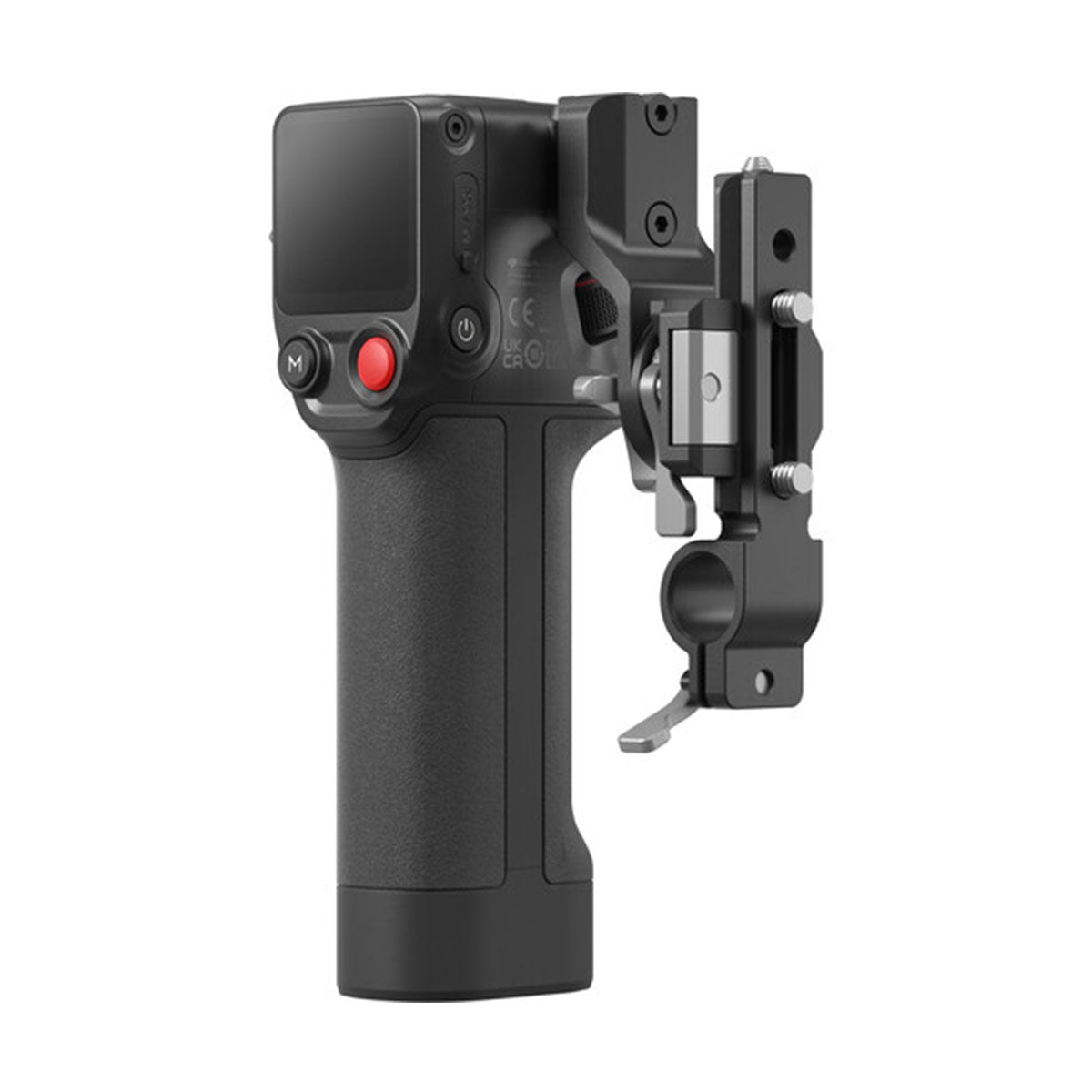

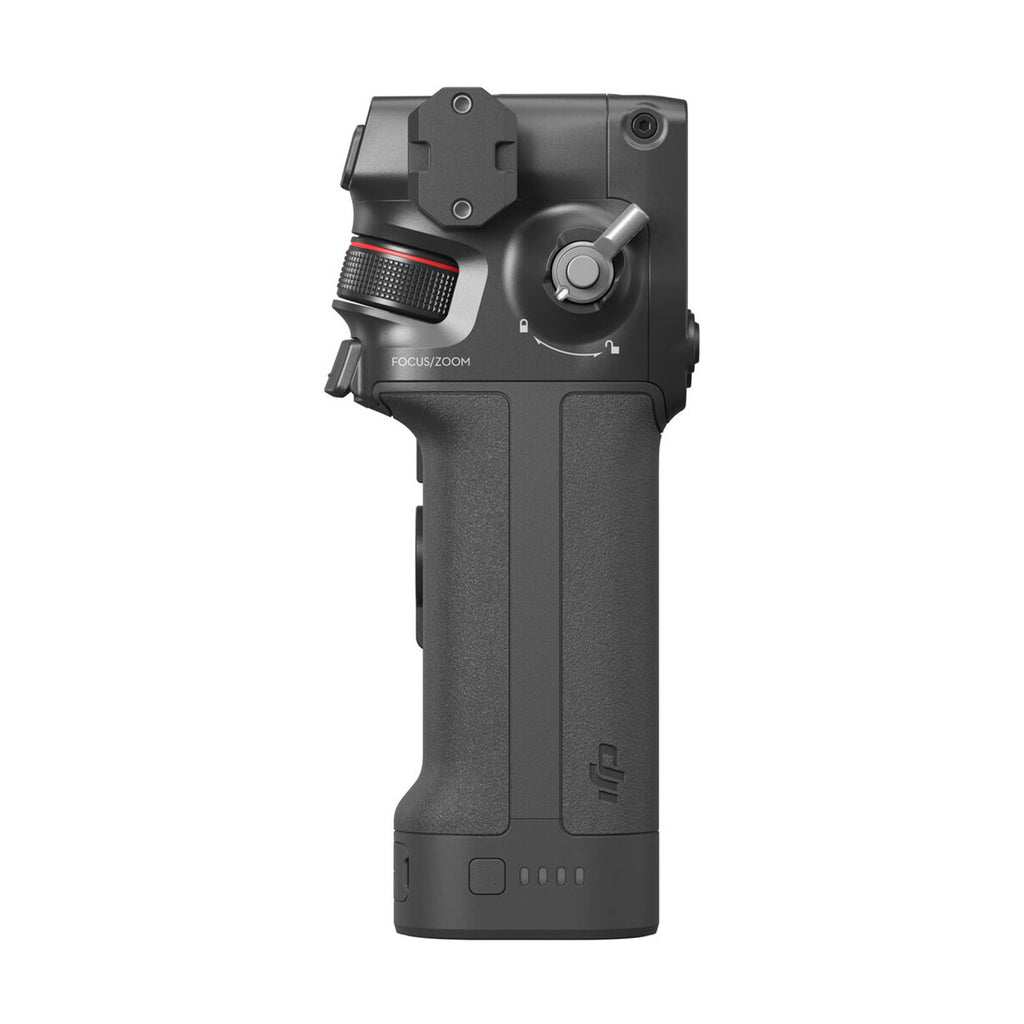

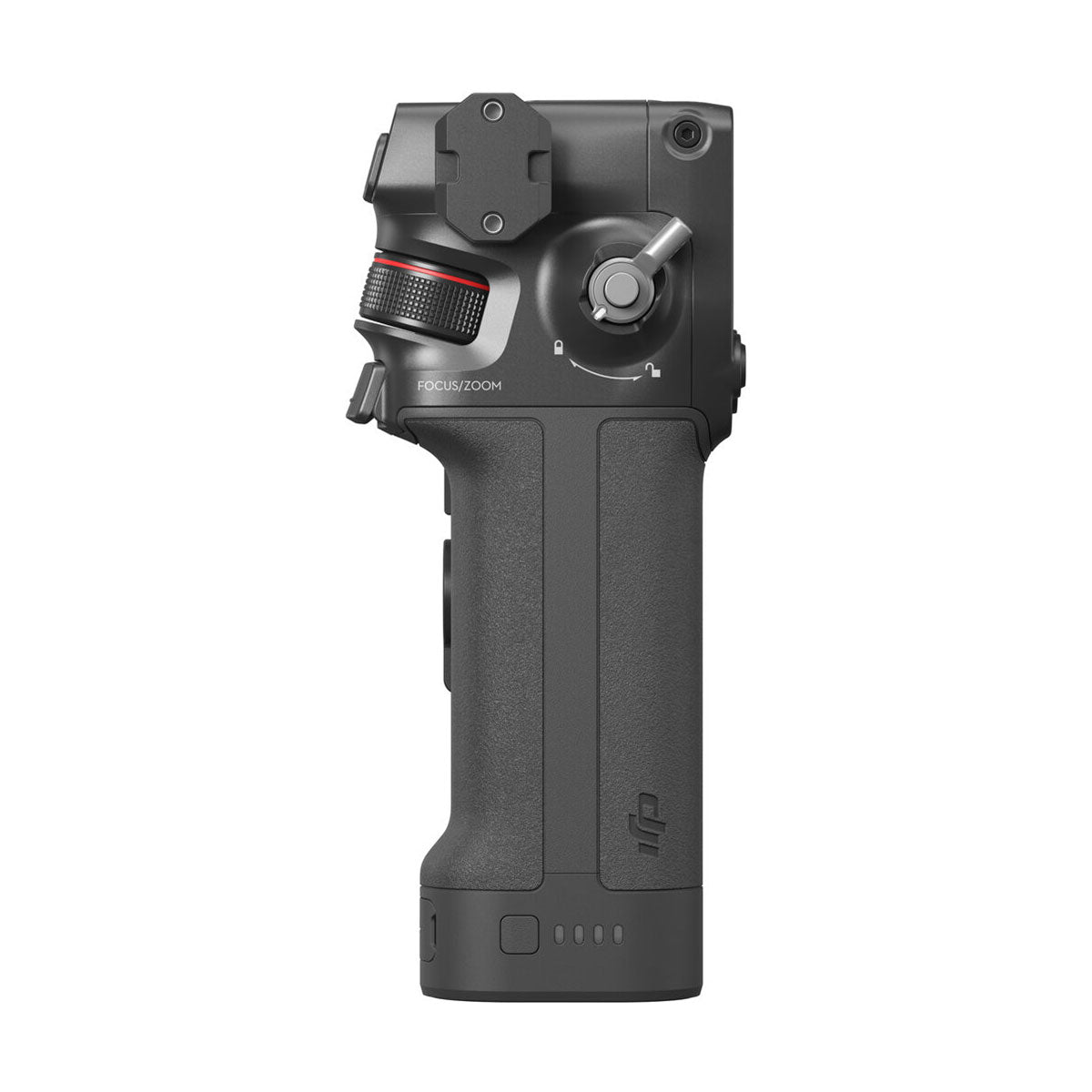

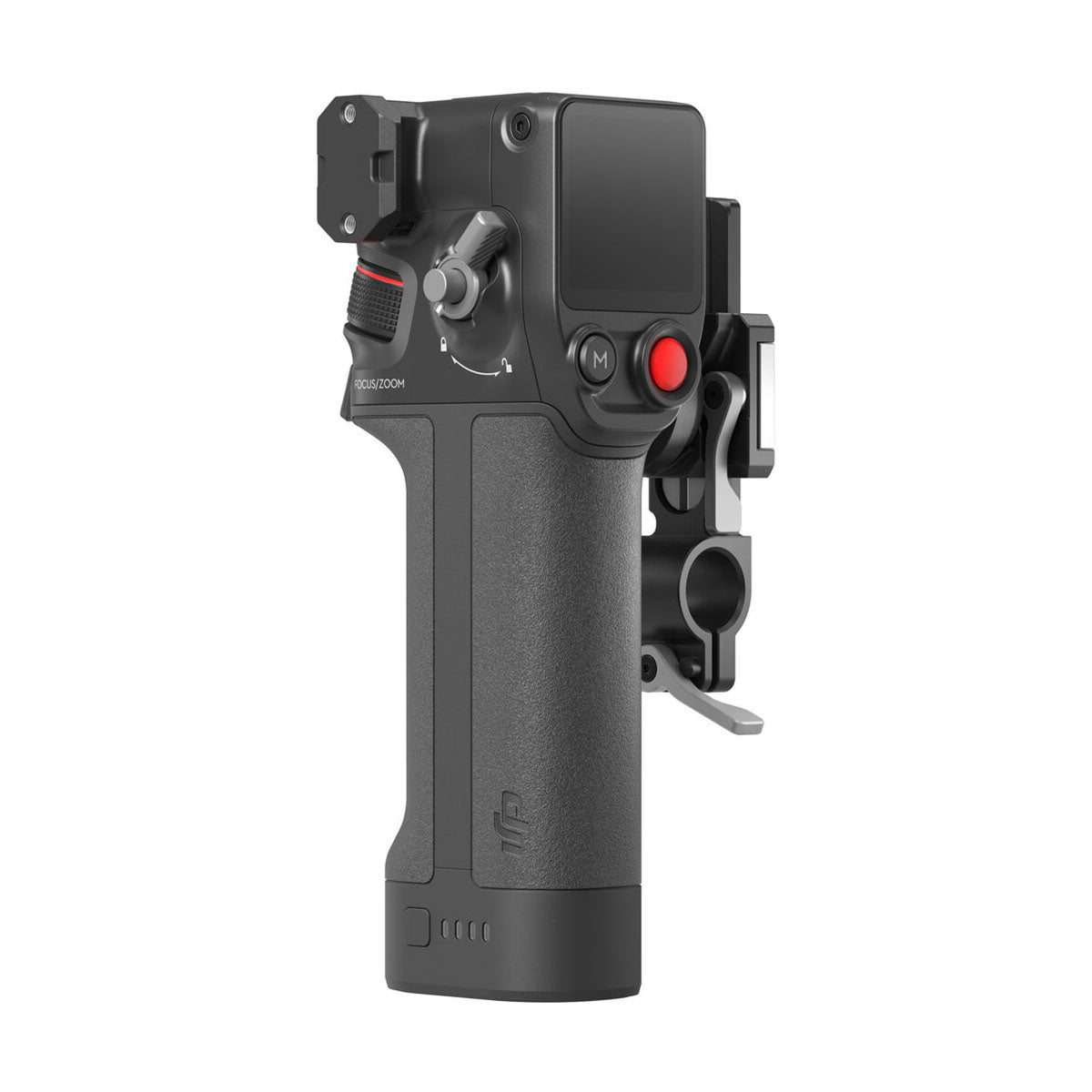

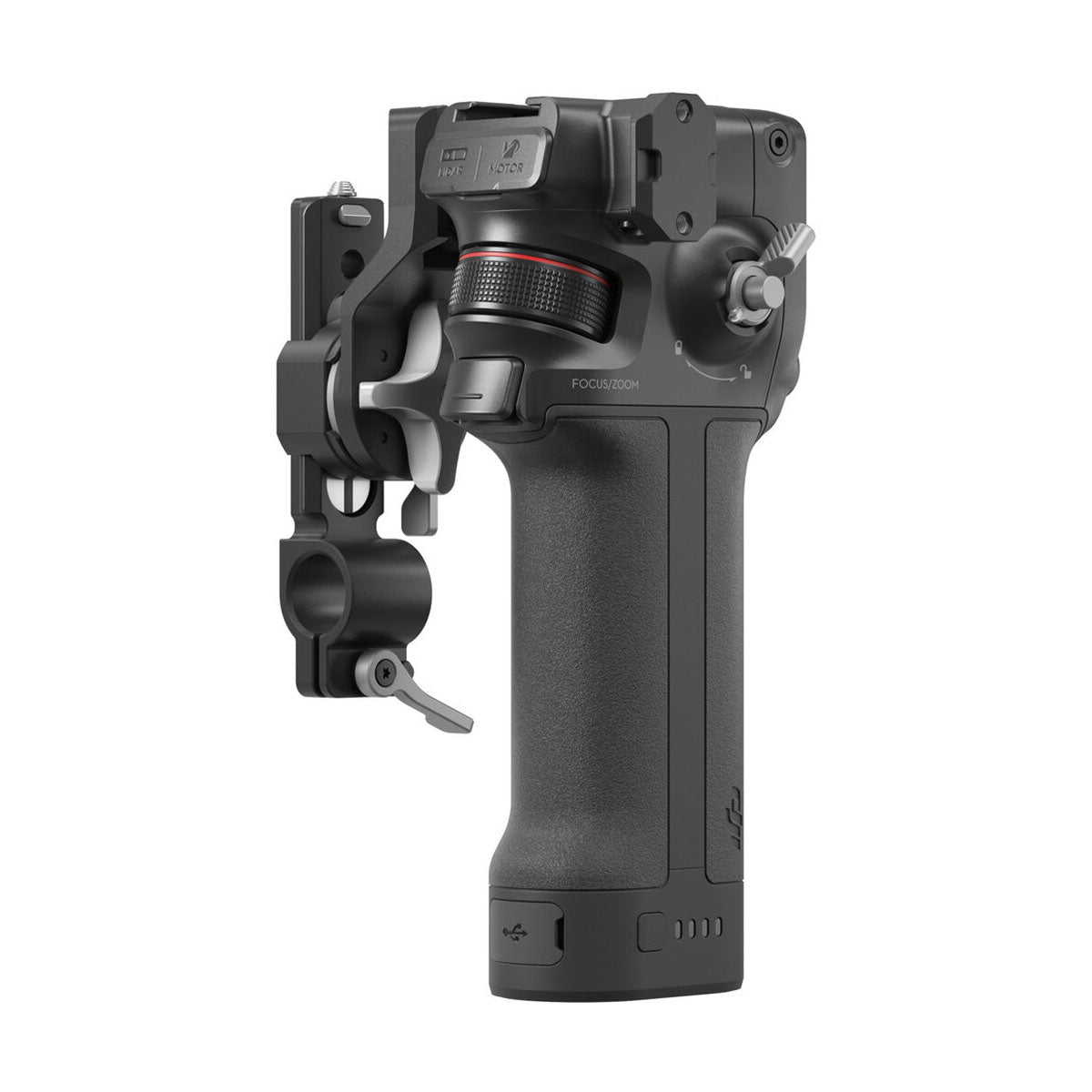

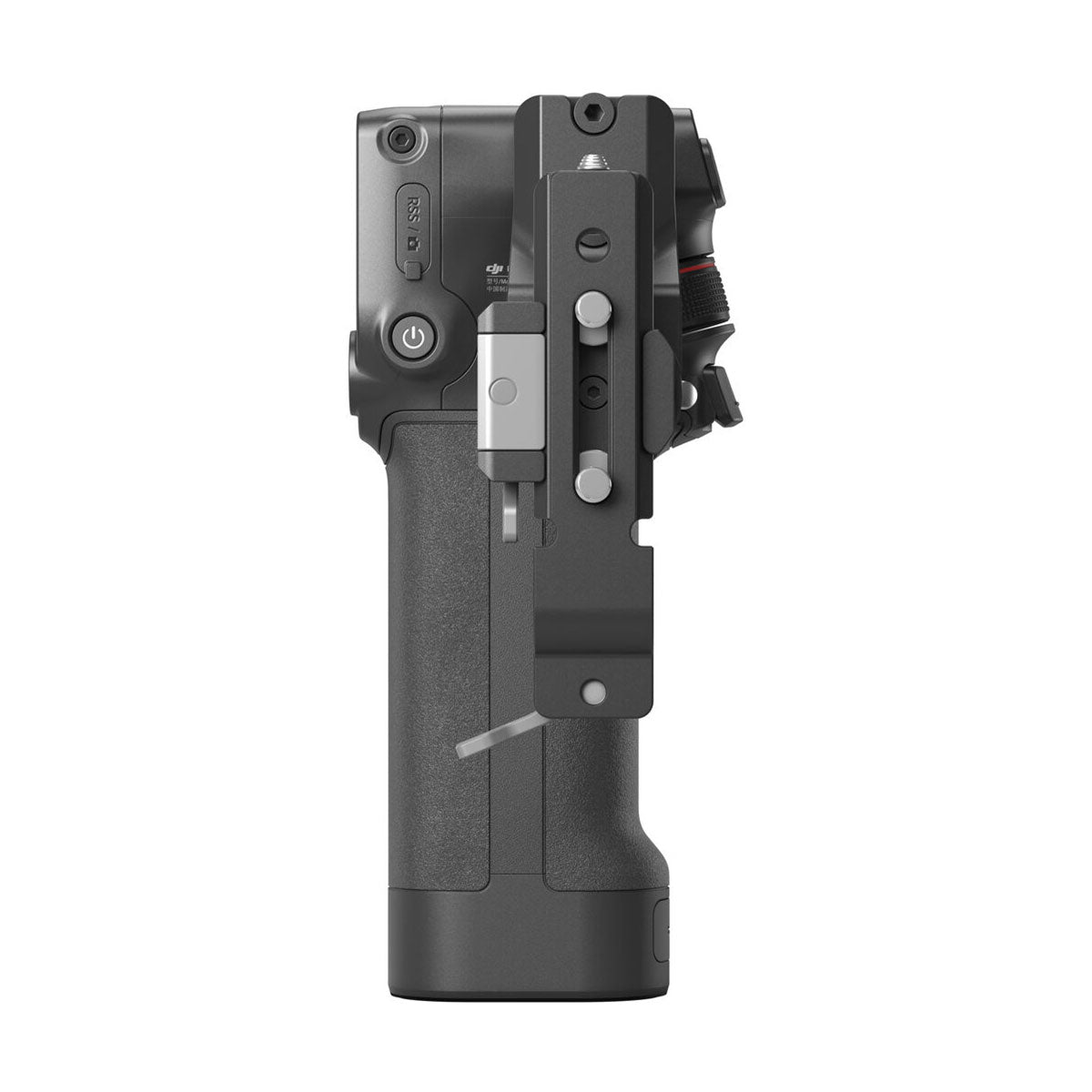

Grip
Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm
Screen 1.8-inch full-color touchscreen
Port USB-C Port (DJI Focus Pro LiDAR)
USB-C Port (DJI Focus Pro Motor)
USB-C Port (Camera Control Port)
USB-C Port (Battery Charging Port)
Operating Time Approx. 2.5 hours
Charging Power Supports 18W PD fast charging
Battery Model BHX711-3000-7.2V
Power Supply Voltage 6.6-8.4 V
Mounting Method Flexible mounting on either left or right side of the cage via NATO port
Operating Temperature -4 to 113°F / -20 to 45°C
Dimensions (L x W x H) Approx. 2.32 x 2.87 x 6.38" / 59 × 73 × 162mm
Weight Approx. 1.06 lbs / 482g

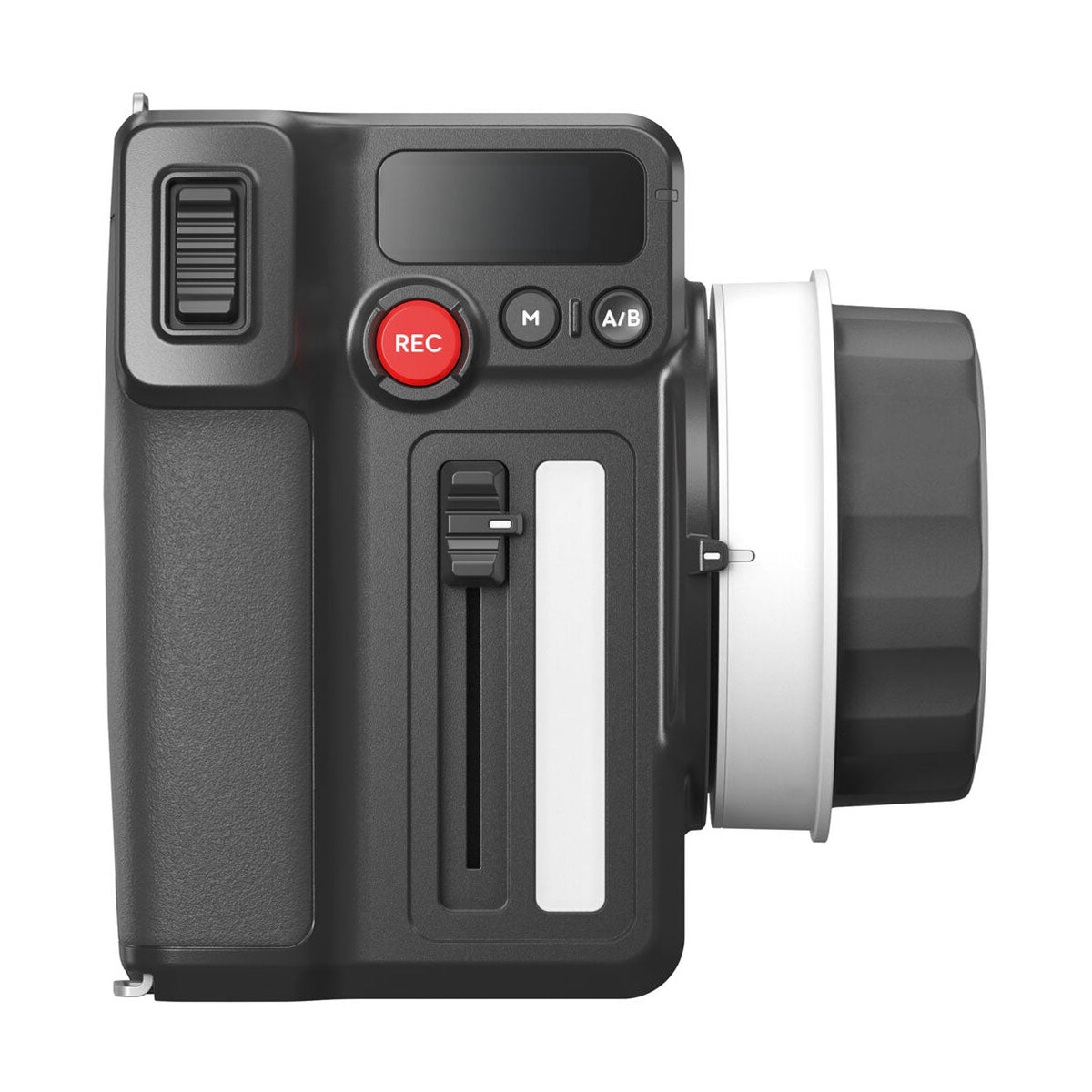

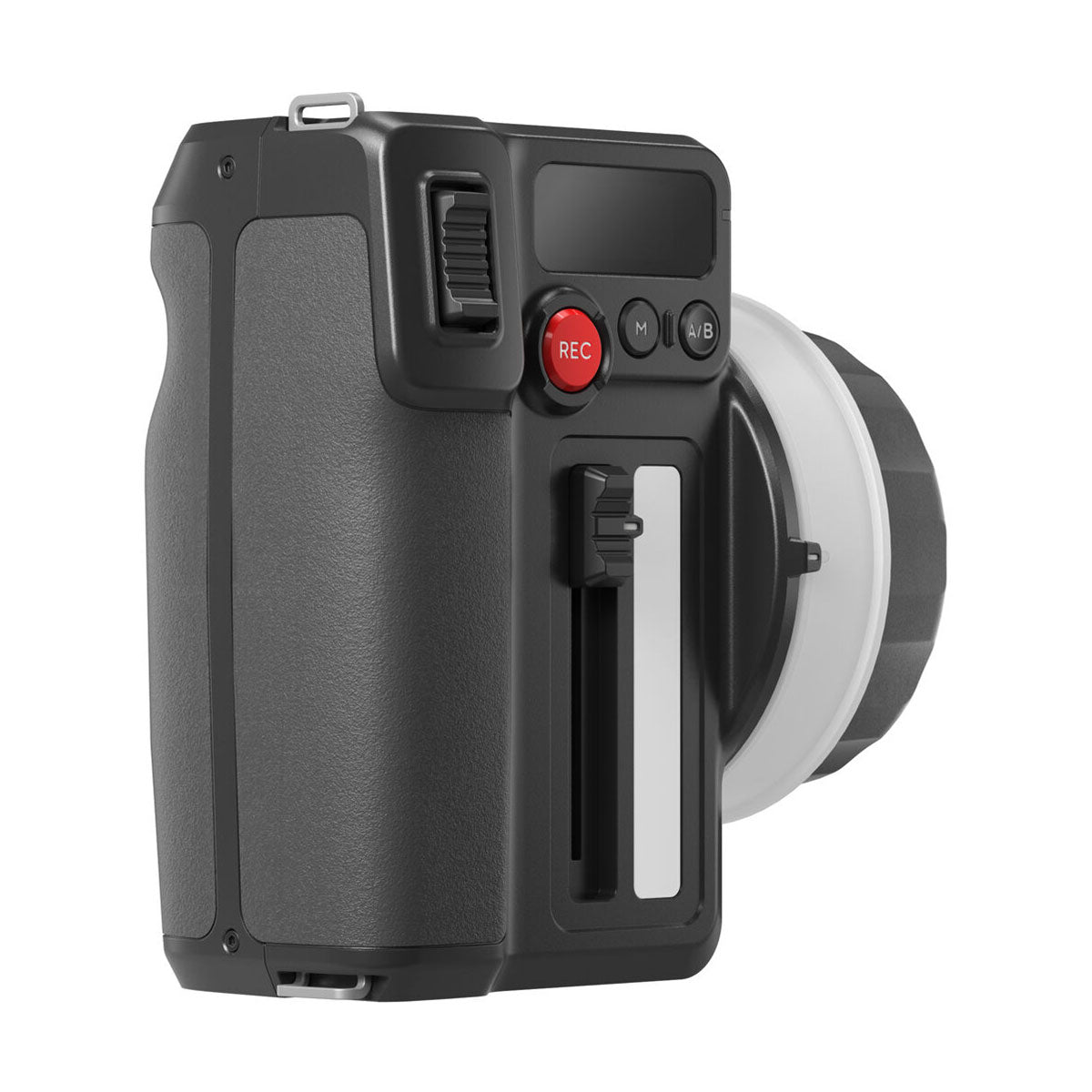

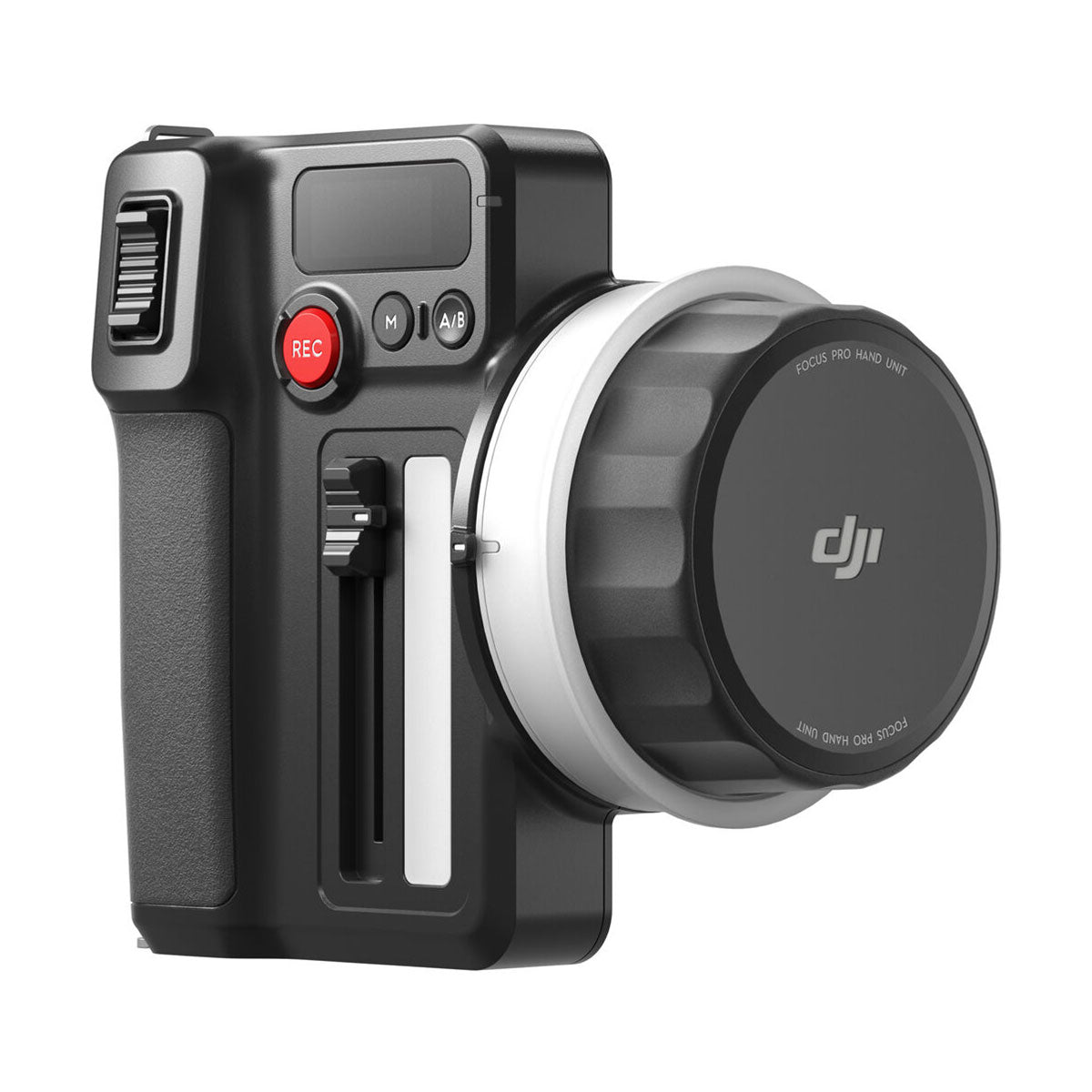

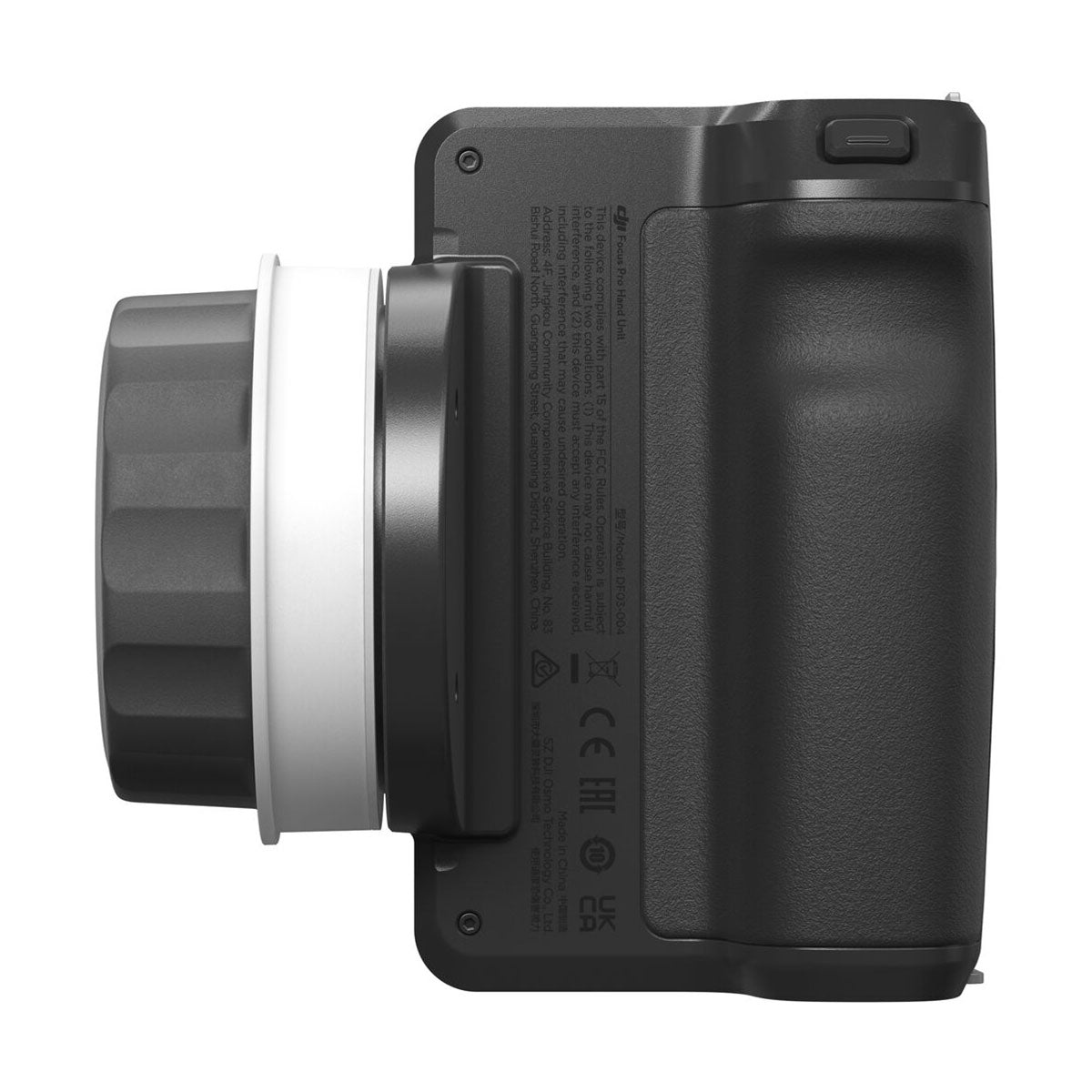

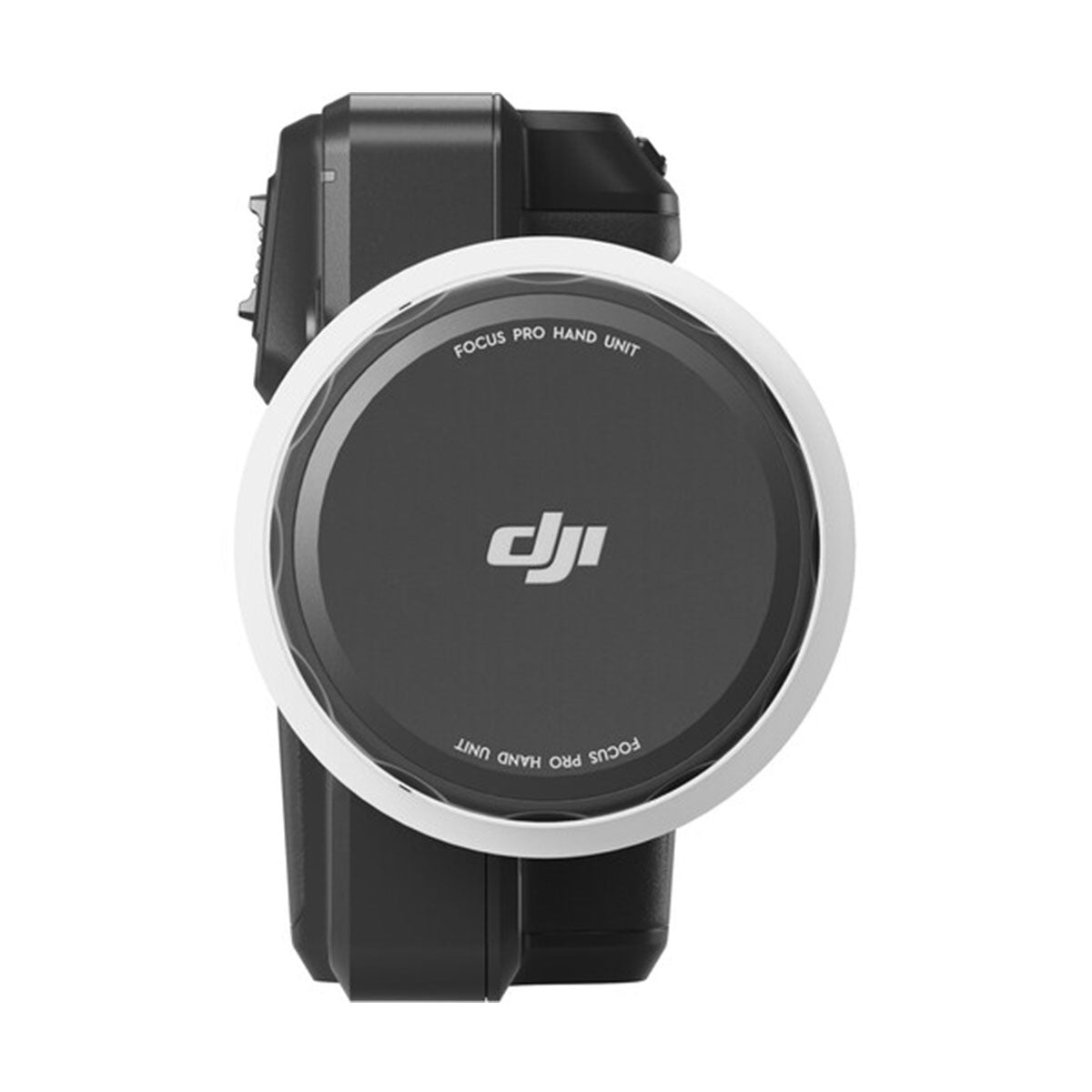

Hand Unit
Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm
2.4GHz Transmitter Power (EIRP) < 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC)
2.4GHz Transmission Distance Up to 160m
Battery Model: NP-F550
Input: 6.3-8.4 V
Dimensions: 71 × 38.6 × 21.1mm
Screen 1.09-inch full-color touchscreen
Static Power Consumption 0.83 W
Operating Temperature -4 to 113°F / -20 to 45°C (excluding battery temperature)
Dimensions (L x W x H) Approx. 5.04 x 3.43 x 3.43" / 128 × 87 × 87mm
Weight Approx. 1.22 lbs / 555g (without battery)

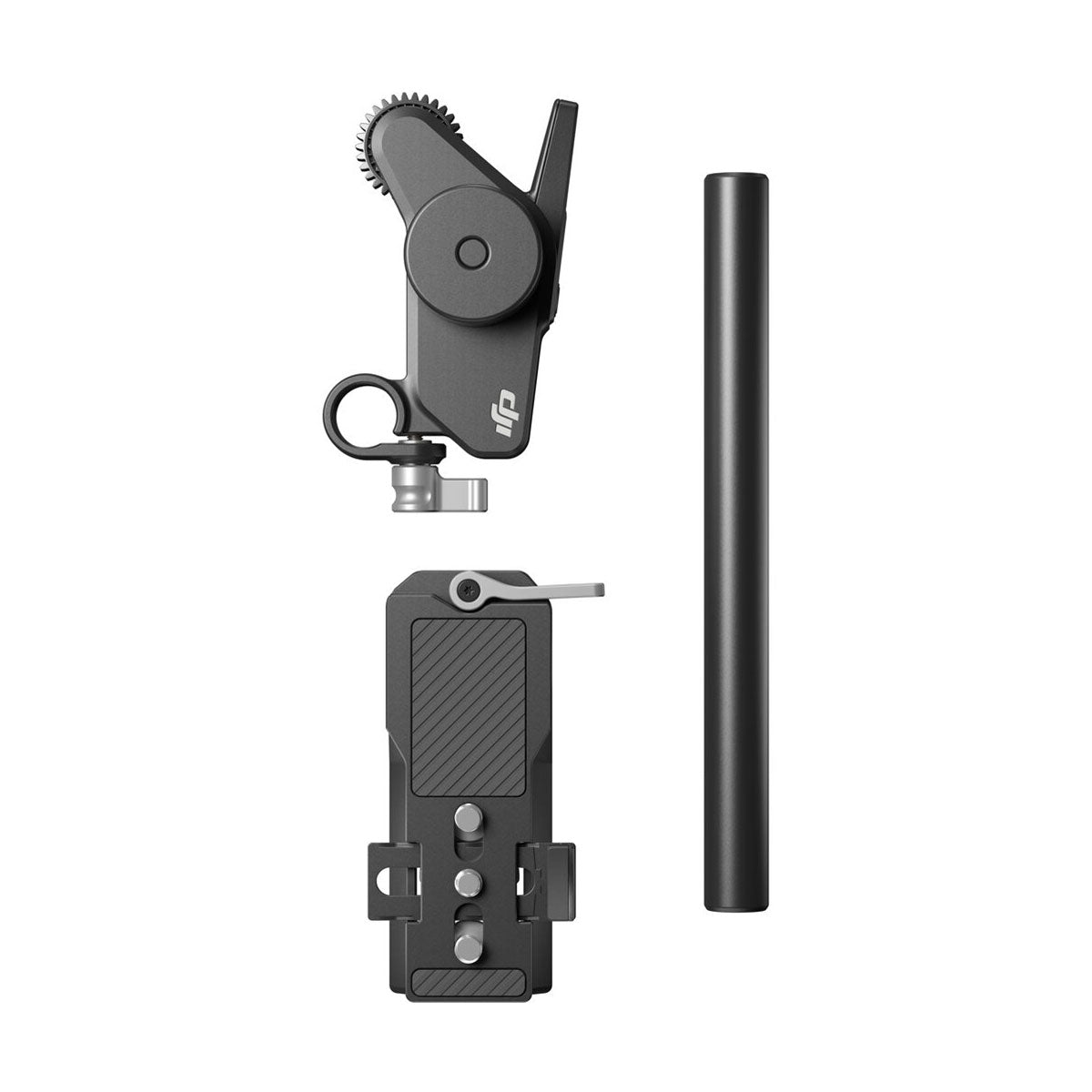

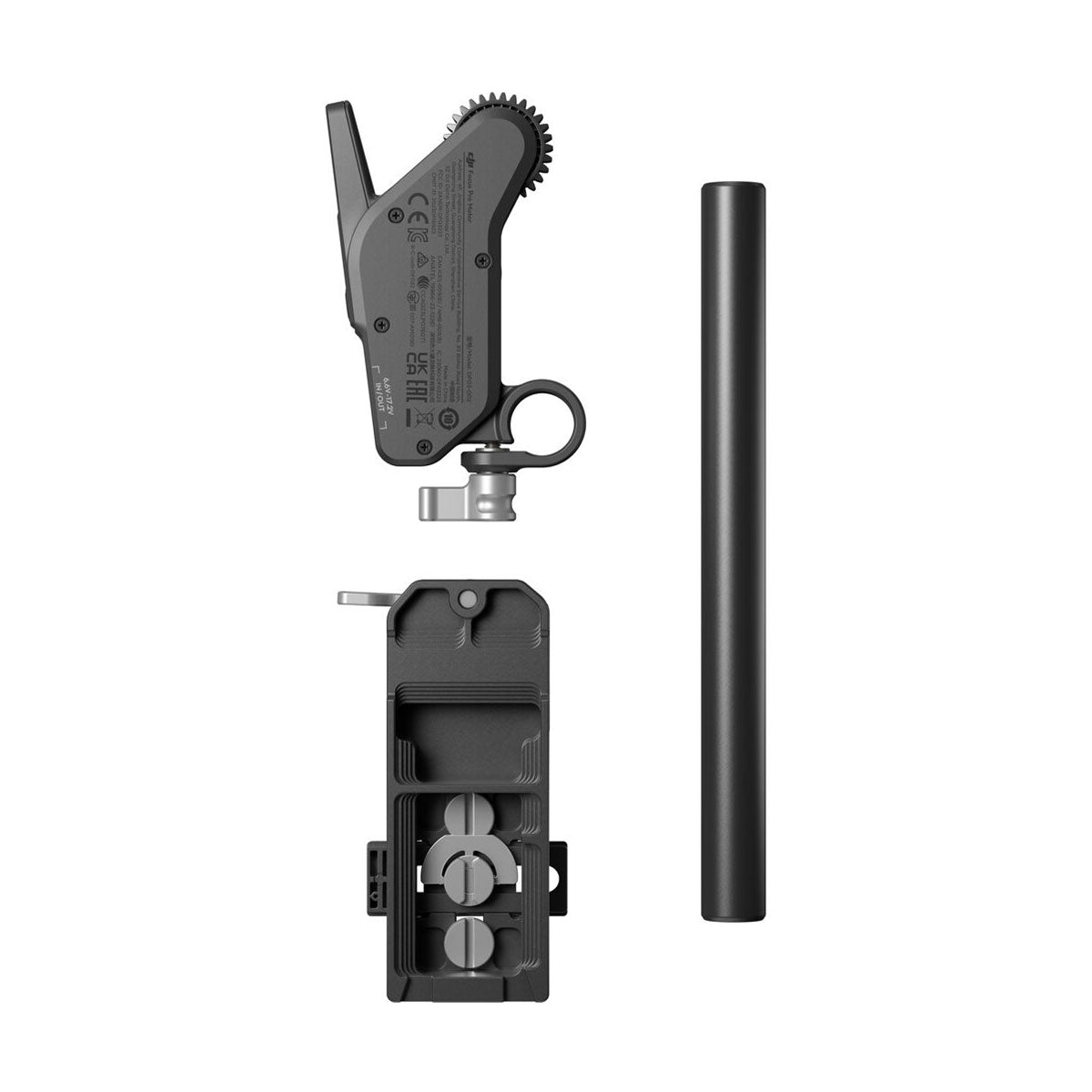

Motor
2.4GHz Transmitter Power (EIRP) < 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC)
2.4GHz Transmission Distance Up to 160m
Mechanical Properties Rod Diameter: 15mm
Output Gear Teeth: 30
Output Gear Module: 0.8
Performance Max Torque: 0.6 N·m (8 V)
Max Speed: 300 rpm (8 V)
Power Supply Voltage 6.6-17.2 V
Stall Current 2 A, 8 V
Free Current 60 mA, 8 V
Output Voltage 6.6-17.2 V
Operating Temperature -4 to 113°F / -20 to 45°C
Dimensions (L × W × H) Approx. 3.94 x 2.4 x 1.34" / 100 × 61 × 34mm
‌Weight Approx. 0.27 lbs / 123g
